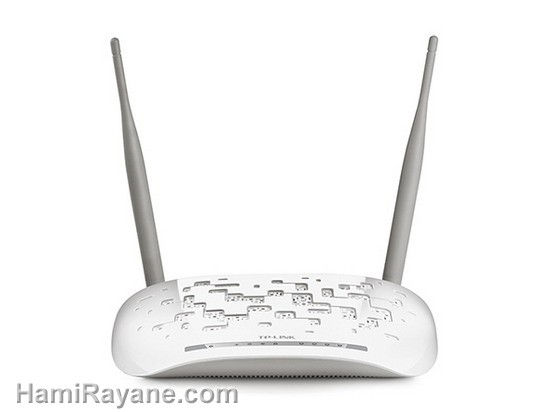

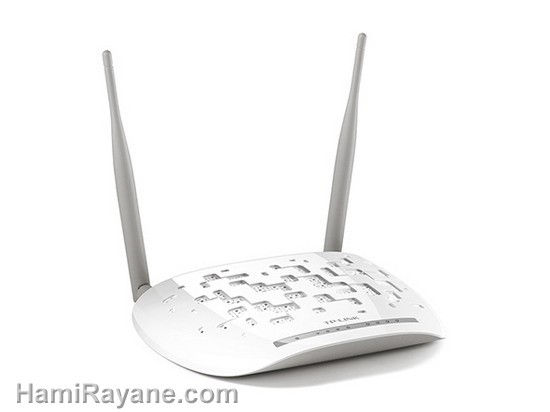

300Mbps Wireless N ADSL2+ Modem RouterTD-W8961ND- ADSL 2/2+ Modem, Wireless N Access Point and 4-Port Router, in a single device
- Wireless N speed up to 300Mbps makes it ideal for heavy bandwidth consuming or interruption sensitive applications like online gaming, Internet calls and even HD video streaming
- Easy Setup Assistant with multi-language support provides quick & hassle-free installation
- Easy one-touch wireless security encryption with the"WPS" button and Easy Wi-Fi On/Off button
OverviewTP-LINK is unveiling its stylish 300Mbps and 150Mbps Wireless N ADSL2+ Modem Routers TD-W8961ND and TD-W8951ND with a fresh look. TP-LINK’s ADSL Modem Routers each combine the functions of a high speed ADSL modem, a router and a wireless access point. They are designed to provide end-users with a one-stop solution to acquiring and sharing high-speed Internet access over a wired or wireless network. Now with their stylish new exteriors, they look as good as they work. New ShellThis modern designed shell not only impresses with its stylish design but also serves for better stability and higher performance. Air ventsMultiple air vents guarantee system stability and ensure high operating performance. Easy Wi-Fi On/OffWhen not in use, users can simply turn off the wireless radio by pressing the Wi-Fi On/Off button and turn it on again whenever they wish to access their wireless networks. - Wi-Fi On/Off Button
- Ensures Wi-Fi Security
- Saves Power
 - High Compatibility
- SPI Firewall
- 4000V
Lightning Protection
- 300Mbps Wireless N ADSL2+ Modem Router
TD-W8961ND - 150Mbps Wireless N ADSL2+ Modem Router
TD-W8951ND
- High speed DSL modem, NAT router and wireless access point in one device
- Wireless N speed up to 300Mbps(TD-W8961ND)/150Mbps(TD-W8951ND) ideal for bandwidth intensive applications
- Easy Setup Assistant with multi-language support provides quick & hassle-free installation
- SPI and NAT firewall protects end-user devices from potential attacks
- WPA-PSK/WPA2-PSK encryptions provide user networks with active defense
- Easy one-touch WPA wireless security encryption with WPS button
- QoS enables smooth IPTV streaming and lag-free online gaming
Related Products| HARDWARE FEATURES |
|---|
| Interface | 4 10/100Mbps RJ45 Ports
1 RJ11 Port |
|---|
| Button | 1 Power On/Off Switch
1 WPS Button
1 Wi-Fi On/Off Button |
|---|
| External Power Supply | 9VDC/0.85A |
|---|
| IEEE Standards | IEEE 802.3, 802.3u |
|---|
| ADSL Standards | Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite)
ITU-T G.994.1 (G.hs),
ITU-T G.995.1 |
|---|
| ADSL2 Standards | ITU-T G.992.3 (G.dmt.bis),
ITU-T G.992.4 (G.lite.bis) |
|---|
| ADSL2+ Standards | ITU-T G.992.5 |
|---|
| Dimensions ( W x D x H ) | 7.7*5.1*1.4 inch ( 195*130*35 mm ) |
|---|
| Antenna Type | Omni directional, Detachable, Reverse SMA |
|---|
| Antenna Gain | 2x5dBi |
|---|
| WIRELESS FEATURES |
|---|
| Wireless Standards | IEEE 802.11n, 802.11g, 802.11b |
|---|
| Frequency | 2.400-2.4835GHz |
|---|
| Transmit Power | <20dBm(EIRP) |
|---|
| Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,
Wireless MAC Filtering |
|---|
| SOFTWARE FEATURES |
|---|
| Quality of Service | QoS Remarking based on IPP/ToS, DSCP and 802.1p |
|---|
| Port Forwarding | Virtual server, DMZ, ACL(Access Control List) |
|---|
| VPN Pass-Through | PPTP, L2TP, IPSec Pass-through |
|---|
| ATM/PPP Protocols | ATM Forum UNI3.1/4.0,
PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516),
IPoA (RFC1577/2225),
PVC - Up to 8 PVCs, |
|---|
| Advanced Features | Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
Dynamic Host Configuration Protocol (DHCP), DHCP relay;
Network Address Translation (NAT);
PVC/Ethernet Port Mapping
VLAN, 802.1P,
Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS,
IGMP snooping V1/2
IGMP Multicast,
UPnP |
|---|
| Security | NAT Firewall,
SPI Firewall,
MAC / IP / Packet / Application / URL Filtering,
Denial of Service(DoS),
SYN Flooding,
Ping of Death |
|---|
| Management | Web Based Configuration(HTTP),
Remote management,
Telnet management,
Command Line Interface,
SSL for TR-069,
SNMP v1/2c,
SNMP over EOC,
Web Based Firmware Upgrade,
CWMP(TR-069),
Diagnostic Tools |
|---|
| OTHERS |
|---|
| Certification | CE, FCC, RoHS |
|---|
| Package Contents | TD-W8961ND
External Splitter
RJ-11 Telephone Cable
RJ-45 Ethernet Cable
Quick Installation Guide
Resource CD
Power Adapter |
|---|
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
|---|
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
|
