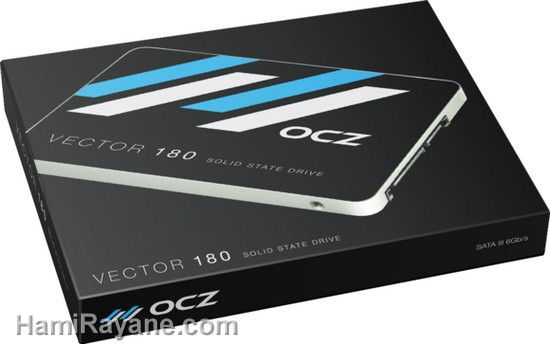

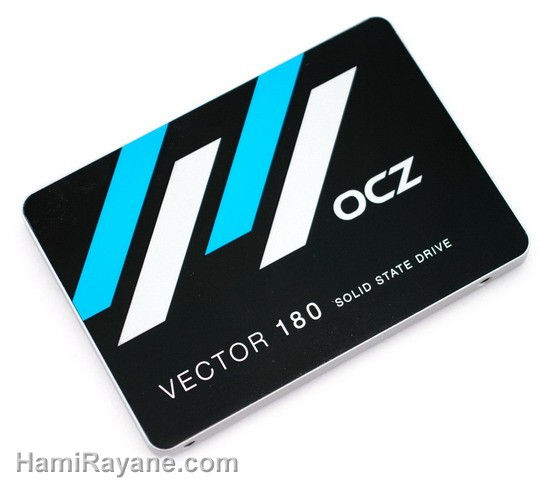

OCZ Vector 180 VTR180-25SAT3-120G 2.5" 120GB SATA III MLC Internal Solid State Drive (SSD)

Vector 180 Series SATA III 2.5" SSD

The Enthusiast's SSD

You say you want only the best components in your system? Well here is your next SSD. Vector 180 was designed to redefine best-in-class storage and built to excel in high-end computing environments.

Unbeatable Performance

Only the fastest boot ups, file transfers, and system responsiveness are acceptable for Vector 180 users. Say goodbye to every form of storage lag and get a computing experience worthy of your time.

The Epitome of Reliability

With superior reliability in mind, Vector 180 SSDs feature Power Failure Management (PFM) to protect the drive in the event of system power loss, ensuring you're up and running again in no time.

Maximum Speed. Zero Tricks.

Vector 180 offers real world performance that you won't get with any other solution. No fancy behind-the-scenes tricks, just pure storage performance.

Quality and Durability from the Inside Out

With Toshiba technology built into every drive, each Vector 180 SSD is engineered for superior quality as well as durability with its premium alloy housing.

Features

• Proprietary OCZ Barefoot 3 controller technology combined with the latest Toshiba A19nm flash
• Power Failure Management (PFM) helps prevent 'brick drive syndrome' that can occur during sudden power losses
• Advanced firmware suite of NAND flash management keeps your drive at higher sustained performance over the long term comparing to competing solutions
• Excellent endurance rating at 50GB/ day of host writes for 5 years perfect for power user applications and workloads
• Excels in both incompressible and compressible data types such as multimedia, encrypted data, .ZIP files and software
• Bundled with a 3.5-inch desktop adapter and Acronis® True Image™ cloning software to easily transfer data from your old hard drive or SSD
• Sleek housing offers slimmer 7mm z-height for compatibility with the ultra-thin notebooks
• OCZ ShieldPlus Warranty - an elite worry-free customer service experience, which eliminates all the hassle surrounding traditional support and warranty claims consumers often have to deal with

Vector 180: Amplified Feature-Set

A. 100% Proprietary Technology
In-house OCZ Barefoot 3 M00 controller and Toshiba flash technology

B. Endurance King
Leading write endurance thanks to advanced suite of flash management

C. Superior Mixed Workload Performance
Higher performance where it matters, mixed read & write workloads

D. Lasting Performance
Maintains higher performance—doesn't slow down as much as other SSDs

E. The Epitome of Reliability
OCZ PFM+ helps protect SSD in the event of system power lossor instability

F. ShieldPlus Warranty
Provides an elite, worry-free customer service experience

Compatibility

Serial ATA

Fully compliant with Serial ATA International Organization: Serial ATA Revision 3.2. Fully compliant with

ATA/ATAPI-8 Standard Native Command Queuing (NCQ)

Operating System

Windows, Linux, Mac OSX

Power Requirements

Standard SATA Power Connector

Targeted Applications

Client workstations and laptops

Learn more about the OCZ Storage Solutions VTR180-25SAT3-120G

Model

Brand

OCZ

Series

Vector 180

Model

VTR180-25SAT3-120G

Device Type

Internal Solid State Drive (SSD)

Used For

Consumer

Details

Form Factor

2.5"

Capacity

120GB

Memory Components

MLC

Interface

SATA III

Controller

OCZ Barefoot 3 M00

Performance

Max Sequential Read

Up to 550 MBps

Max Sequential Write

Up to 450 MBps

Sustained Random 4KB Read

Up to 85,000 IOPS

Sustained Random 4KB Write

Up to 90,000 IOPS

MTBF

2,300,000 hours

Features

Features

Proprietary OCZ Barefoot 3 controller technology combined with the latest Toshiba A19nm flash

Power Failure Management (PFM) helps prevent 'brick drive syndrome' that can occur during sudden power losses

Advanced firmware suite of NAND flash management keeps your drive at higher sustained performance over the long term comparing to competing solutions

Excellent endurance rating at 50GB/day of host writes for 5 years perfect for power user applications and workloads

Excels in both incompressible and compressible data types such as multimedia, encrypted data, .ZIP files and software

Bundled with a 3.5-inch desktop adapter and Acronis True Image cloning software to easily transfer data from your old hard drive or SSD

Sleek housing offers slimmer 7mm z-height for compatibility with the ultra-thin notebooks

OCZ ShieldPlus Warranty - an elite worry-free customer service experience, which eliminates all the
hassle surrounding traditional support and warranty claims consumers often have to deal with

Environmental

Power Consumption (Idle)

0.85W

Power Consumption (Active)

3.7W

Operating Temperature

0°C ~ +70°C

Storage Temperature

-45°C ~ +85°C

Max Vibration Resistance

2.17Grms (7-800Hz) (Operational)
3.13Grms (5-800Hz) (Non-operational)

Dimensions & Weight

Height

7.00mm

Width

99.7mm

Depth

69.75mm

Weight

115g
