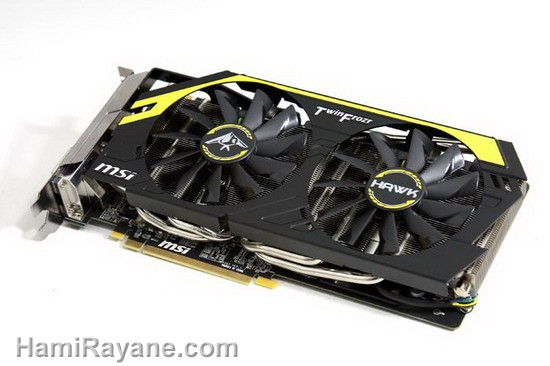

MSI's HAWK series of overclocking graphics cards have become synonymous with affordable overclocking graphics cards. With an MSI HAWK Graphics card you're always getting a card that performs out of its league thanks to the better component quality and enhanced overclocking potential.
TWINFROZR
MSI's Twin Frozr has been the industry defining graphics card cooler. The first Twin Frozr kicked of the dual-fan trend and today MSI still shows class-leading performance.
A Twin Frozr cooler uses large Propeller Blade Technology Fans, plenty of heat pipes with SuperPipe technology, a dense fin-grid array and custom heat sinks for the memory modules and PWM components. A backplate reinforces the structure of the card and helps in thermal dissipation.
AIRFLOW CONTROL TECHNOLOGY
The Twin Frozr IV Advanced Thermal Design is equipped with Airflow Control Technology. These little fins inside the heatsink direct airflow towards the heat pipes for much faster heat dissipation. This enables MSI HAWK graphics cards to run with lower fan speeds and less fan noise.
ENHANCED POWER DESIGN
- More power output for maximum OC potential
- 8 layers PCB design for more stable environment
12 PHASES PWM
- GPU 8
- MEM 2
- PCI-E 1
- LOCAL LOOP 1
ENHANCED AND ENLARGED PCB DESIGN
- Fits more components
- Lower temperatures
- Easier access of Crossfire connector
- MSI clean PCB
GPU (VDDC)PCIEMemory (MVDD)PLL (VDDCI)
FRONT AND BACK VIEW WITH HEAT DISSIPATION PANELS
MILITARY CLASS 4 COMPONENTS
The key deciding factor in performance is stability. The higher your stability, the higher your performance can be. MSI exclusively uses Military Class 4 components to power the HAWK. These components are MIL-STD-810G certified and have proven to be able to withstand the torturous conditions of extreme overclocking.
COPPER MOS
This latest technology of MOSFETS are built on a copper packaged principle which dissipate heat fast evenly and make sure the right voltages hit the right components on the MSI Lightning graphics card.
SUPER FERRITE CHOKES
Super Ferrite Chokes use a Ferrite core that is Super-Permeable. This allows the Super Ferrite Chokes to run at a 35 degree Celsius lower temperature, have a 30% higher current capacity, a 20% improvement in power efficiency and better overclocking power stability.
DARK CAP
With their aluminum core design, Dark CAP's have been a staple in high-end design mainboard designs and provides lower Equivalent Series Resistance (ESR) as well as its over-10-year lifespan.
ACTIVE PHASE SWITCHING (APS)
Increase efficiency by disabling unneeded power phases in low power demand situations
V-CHECK POINTS
V-Check Points allow you accurately measure the voltages of your graphics card as software will always show a small variance and this can be disastrous under wrong circumstances.
TWIN BIOS
Default BIOS with out-of-the-box overclock and LN2 BIOS for extreme overclockers, removes built-in protection and limitations.
AFTERBURNER
MSI Afterburner has quickly become the favorite overclocking software for media, overclockers and end-users. Because of its simple interface, it's easy to learn, but it packs a lot of powerful features like an integrated benchmark utility called Kombustor that can check your system performance in benchmarking mode, or run as a stability test.
Don't speak English? No problem: MSI Afterburner is translated in many languages including Russian, Spanish, Chinese and Korean! Not satisfied with the looks? Just change to one of the many different skins or create one yourself with ease!
Even better, you can run Afterburner straight from your smartphone! Download the MSI Afterburner App from Google Play or the Apple store and start overc
- Graphics Processing UnitAMD Radeon™ R9 270X
- InterfacePCI Express x16 3.0
- Boost / Base Core Clock1100Mhz (Boost: 1150Mhz)
- Memory Size (MB)2048
- Memory TypeGDDR5
- Memory Interface256 bits
- Memory Clock Speed (MHz)5600
- Memory Bandwidth (GB/sec)179.2
- DVI ConnectorsDL-DVI-I x 1, DL-DVI-D x 1
Max Resolution:2560 x 1600 @60 Hz - HDMI Connectors1 (version 1.4a)
Max Resolution: 3840x2160 @30 Hz
4096x2160 @24 Hz - DisplayPort1 (version 1.2)
Max Resolution: 4096x2160 @ 50 Hz - Maximum DisplaysUp to 6 displays with the use of a DP MST Hub
- HDCP SupportY
- RAMDAC speed (MHz)400
- DirectX Version Support12 API
- OpenGL Version Support4.3
- Multi-GPU TechnologyCrossFire
- Card Dimension(mm)263 x 126 x 38mm
- Card Weight (g)755
- Power consumption (W)161
- Recommended PSU (W)500
- Power Connectors2 x 6-pin
- AccessoriesDVI to D-Sub Dongle
