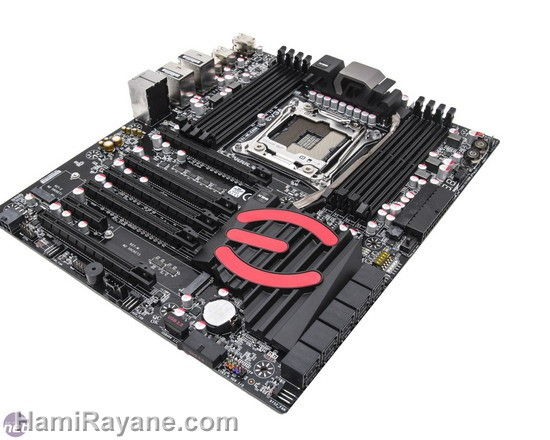

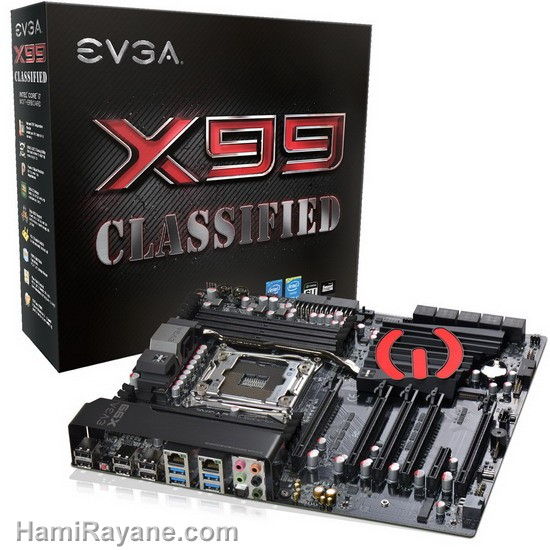

EVGA X99 Classified (151-HE-E999-KR) LGA 2011-v3 Intel X99 SATA 6Gb/s USB 3.0 Extended ATX Intel Motherboard

The EVGA X99 Classified was engineered from the ground up to be the best overclocking motherboard on the planet. It all starts with power. Dual 8 PIN CPU power inputs provide up to 600W of dedicated power for the CPU, along with a highly efficient 10-phase Digital VRM providing the cleanest power possible to the CPU possible, fed through a CPU socket that has 1.5X the amount of gold content. A total of 8 DIMM slots support up to 128GB of DDR4 memory, and a 4 layer memory T-routing design allows for extreme memory speeds such as 3000MHz+ (OC). The PCI-E layout is optimized for improved lane distribution and better performance, and with native support for NVIDIA 4-way SLI, this is the ultimate platform for the enthusiast.

Features

• Intel® X99 Express Chipest
• 10 Native SATA 6.0Gb/s Ports
• 6 Native USB 3.0 / 8 USB 2.0
• 8 DIMM Quad-Channel DDR4 3000MHz+ (OC)(Up to 128GB)
• 100% Solid State Capacitors
• EATX Form Factor
• 2x Intel® Gigabit Ethernet
• Creative Sound Core3D Quad-Core Audio Processor
• M.2 Socket Slot E and Slot M

• 8 Layer PCB
• Highly Efficient 8-phase Digital VRM
• Onboard Power, Reset and Clear CMOS
• PCI-E Disable Switches
• EVGA E-LEFT X Tuning Utility
• Dual BIOS Support
• Onboard CPU Temp Monitor
• 150% Increased Gold Content
• EZ Voltage Read Points
• 8+8-PIN CPU Power Input - Dedicated 600W

• HIGH GOLD CONTENT FOR CPU SOCKET

Higher volume of precious metal (Gold) used in the sockets greatly improves the conductivity and produces a cleaner signal due to less resistance/impedance. The X99 Classified features 300% more gold than the standard X99 Socket.

• PCI-E DISABLE SWITCHES

No need to remove a card when testing, instead you can disable the slot with a dip-switch, this can greatly reduce the time spent in troubleshooting , as you do not need to disassemble anything to isolate PCI-E components.

• 4 WAY SLI SUPPORT + PHYSX

The X99 FTW is rated for 4 Way SLI to handle the most demanding video loads.

• 90 DEGREE 24PIN CONNECTOR

Not having the main power for the board facing perpendicular makes it easy to get the cables routed well and out of the way.

• DUAL BIOS SUPPORT

The X99 Classified is not just focused on the upper end of extreme builds, but also with the smaller components as well. As such Creative Core3D onboard sound, also dual integrated INTEL NIC's so you have the best quality network connection right out of the box.

• TRIPLE BIOS SUPPORT

The X99 Classified comes preloaded with triple BIOS for ultimate protection. Whether you pushed a brink OC until; it is not bootable, or you suffered a power outage during a BIOS flash, you can always switch to another BIOS, boot as usual, then if desired, hot-flash the faulted BIOS.

• 10 PHASE PWM

A 10 Phase PWM helps to ensure that the power reaching the processor is clean and stable.

• M.2 SUPPORT

The X99 Classified supports the newest slot architecture with support for many device types across 2 slots, Slot E optimized for WLAN, wifi, and Bluetooth and the Slot M optimized for SSD devices.

UEFI

These motherboards also feature EVGA's new GUI BIOS that focuses on the best overclocking support, functionality, and are straight and to the point, the way a modern BIOS should be.

COMPARISON

AWARDS

Learn more about the EVGA X99 Classified (151-HE-E999-KR)

Model

Brand

EVGA

Model

X99 Classified (151-HE-E999-KR)

Supported CPU

CPU Socket Type

LGA 2011-v3

CPU Type

Core i7 (LGA2011-v3)

Chipsets

Chipset

Intel X99

Memory

Number of Memory Slots

8×288pin

Memory Standard

DDR4 Up to 3000 MHz+

Maximum Memory Supported

128GB

Channel Supported

Quad Channel

Expansion Slots

PCI Express 3.0 x16

5 x PCI Express 3.0 x16

PCI Express x4

1 x PCI Express x4

Storage Devices

SATA 6Gb/s

10 x SATA 6Gb/s

M.2

1 x M.2 Slot M for Storage

SATA RAID

0/1/5/10/JBOD

Onboard Video

Onboard Video Chipset

None

Onboard Audio

Audio Chipset

Creative Core 3D (CA0132)

Audio Channels

6 Channels

Onboard LAN

LAN Chipset

Intel I217

Second LAN Chipset

Intel i210

Max LAN Speed

Dual 10/100/1000Mbps

Rear Panel Ports

RJ45

2 x RJ45

USB 3.0

4 x USB 3.0

USB 1.1/2.0

6 x USB 2.0

Audio Ports

5 Ports

Internal I/O Connectors

Onboard USB

2 x USB 3.0 + 2 x USB 2.0

Other Connectors

1 x M.2 Slot E

Physical Spec

Form Factor

Extended ATX

Dimensions (W x L)

10.375" x 12"

Features

Features

Supports Intel Core i7 Processor family for LGA-2011-3 socket
Intel- X99 Chipset
Enthusiast Layout Supporting 2-Way SLI, 3-Way, and 4-Way SLI & CrossfireX
4 DIMM Quad-Channel DDR4 3200MHZ+ (Up To 128GB)
PCI Express 3.0 Ready
5 PCI Express Graphics Expansion Slots
8 USB 2.0 Ports (six rear panel, two onboard from a single header)
6 USB 3.0 Ports (four rear panel, two onboard)
10 SATAIII/6G Ports
2 Intel Gigabit Ethernet Port (10/100/1000)
Creative Sound Core3D Quad-Core Audio Processor + Optical
M.2 1 x Key E, 1 x Key M 32Gb/s
EATX Form Factor

Packaging

Package Contents

ACCESSORIES:
EVGA Driver Installation Disc
with EVGA E-LEET
Rear case I/O Shield
Rear case I/O Cover
2 SATA 6G Data Cables
Manual
