An ideal choice for value-conscious system builders and upgraders

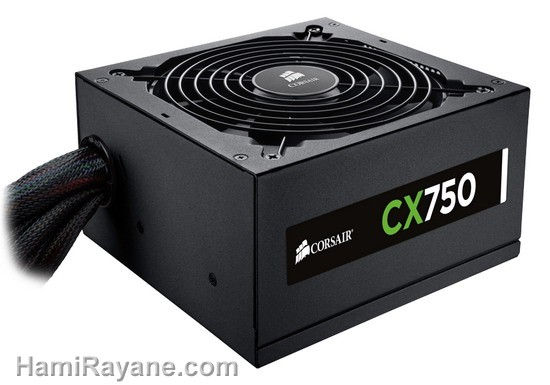

CX Series power supply units are an excellent choice for basic system builds and desktop PC computer upgrades. CX Series PSUs are available in a variety of power configurations, and include features that are normally found only on premium power supplies.

Low noise

80 PLUS Bronze certified efficiency and clever fan design allow for little or no detectable fan noise during regular operation.

Features

Reliable and compatible

CX Series is built and tested to strict standards for trouble-free installation and smooth operation.

Good looks

The matte black finish, black-sleeved cables and black connectors help give your system a restrained, high-tech look.

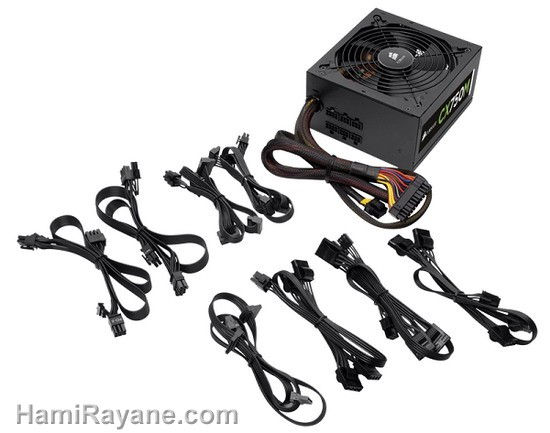

Ample connectors and long cables

Long cables make CX Series suitable for installation even in full-height tower cases, and the generous cable count allows you to power multiple components and storage devices.

Corsair engineering and quality control

Every Corsair power supply is designed by our California engineering team and built to our exact specifications. The same care that goes into the design and testing of our renowned high-power enthusiast power supplies also goes into the CX Series, because you need confidence and reliability regardless of your build budget.

Black goes with everything

You’re building a PC, not a battleship, and appearance counts. The matte black finish and all-black sleeved cables and connectors help give your system a high-tech, restrained look.

Large-diameter, thermally controlled fan

Once you’ve installed a PSU, you shouldn’t have to think about it. Employing a thermally controlled fan makes the CX Series virtually silent at idle, and the large diameter reduces noise even when you’re pushing your system hard.

Contents and Specifications

Package contents

• CX Series power supply

Technical Specifications

• Ultra-quiet 120mm fan delivers excellent airflow at an exceptionally low noise level by varying fan speed in response to temperature
• 80 PLUS Bronze certified
• 0.99 Active Power Factor Correction provides clean and reliable power
• Complies with ErP Lot 6 European Union standard for low standby power consumption
• Universal AC input from 90~264V — No more hassle of flipping that tiny red switch to select the voltage input!
• Extra long fully-sleeved cables support full tower chassis
• Dedicated single +12V rail offers maximum compatibility with the latest components

• Over-voltage and over-power protection, under-voltage protection, and short circuit protection provide maximum safety to your critical system components
• Three year warranty and lifetime access to Corsair’s legendary technical support and customer service
• Supports the latest ATX12V v2.3 standard and is backward compatible with ATX12V 2.2 and ATX12V 2.01 systems
• Safety Approvals: UL, CUL, CE, CB, FCC Class B, TÜV, CCC, C-tick
• Dimensions: 5.9"(W) x 3.4"(H) X 5.5"(L); 150mm(W) x 86mm(H) x 140mm(L)
• MTBF: 100,000 Hours
