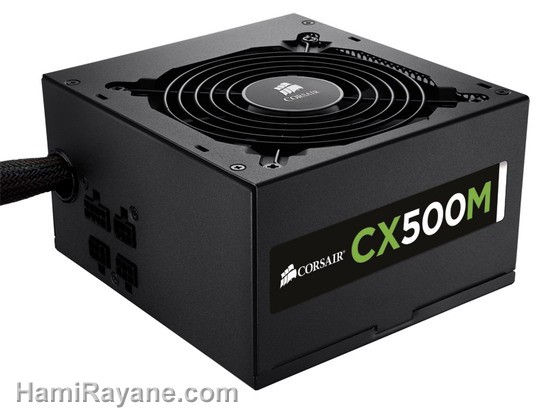

CORSAIR CXM series CX500M 500W ATX12V v2.3 SLI Ready CrossFire Ready 80 PLUS BRONZE Certified Modular Active PFC Power Supply

Learn more about the Corsair CX500M

Model

Brand

CORSAIR

Model

CX500M

Series

CXM series

Details

Type

ATX12V v2.3

Maximum Power

500W

Fans

1

PFC

Active

Main Connector

24Pin

+12V Rails

Single

PCI-Express Connector

2 x 6+2-Pin

SATA Power Connector

5

SLI

SLI Ready

Haswell Support

Yes

CrossFire

CrossFire Ready

Modular

Modular

Efficiency

Up to 85%

Energy-Efficient

80 PLUS BRONZE Certified

Over Voltage Protection

Yes

Input Voltage

100 - 240 V

Input Frequency Range

47 - 63 Hz

Input Current

10 - 5A

Output

+3.3V@25A, +5V@20A, +12V@38A, [email protected], +5VSB@3A

MTBF

100,000 Hours

Dimensions

3.39" x 5.91" x 6.30"

Weight

7.2 lbs.

Features

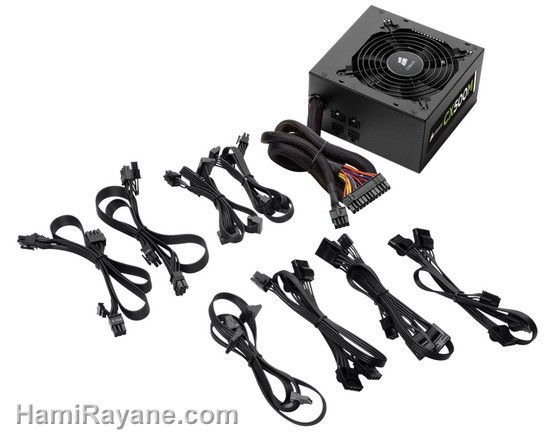

Connectors

1 x 24pin main connector
1 x 8pin EPS12V CPU
2 x PCI-E
5 x SATA
4 x Peripheral
1 x Floppy

Features

Up to 85% energy efficiency means less heat generation and lower energy bills.

0.99 Active Power Factor Correction provides clean and reliable power.

A dedicated single +12V rail offers maximum compatibility with the latest components.

Over-voltage and over-power protection, under-voltage protection, and short circuit protection provide maximum safety to your critical system components.

Extra long fully-sleeved cables support full tower chassis.

It supports the latest ATX12V v2.3 standard and is backward compatible with ATX12V 2.2 and ATX12V 2.01 systems.

ErP Lot 6 Compliant
