Future-Ready.
Support for USB 3.0 and 2.5” SSDs is built-in. Two USB 3.0
connectors are provided on the front panel and connect directly to
motherboards with compatible USB 3.0 headers. Integrated SSD support
lets you install 2.5” solid-state drives in any of the hard drive bays,
without having to deal with adapters.
Contents and Specifications
Package contents

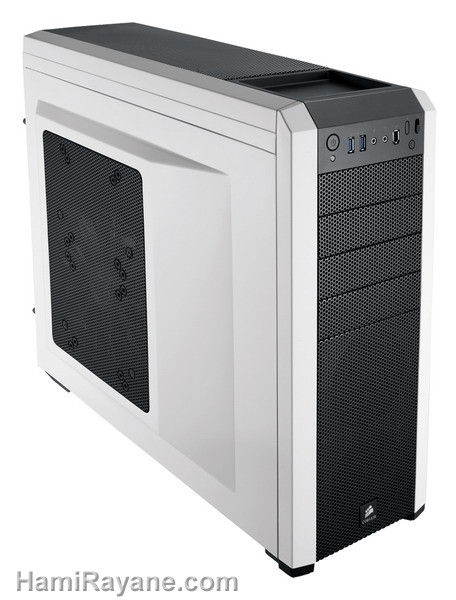

- Carbide Series 500R Mid-Tower Case
- Quick Start Guide
- Installation kit
Compatibility
- ATX and Micro ATX motherboards
Technical specifications
- Dimensions: 20.5” x 8.1” x 20”
- Supports graphics cards up to 452mm in length (with hard drive cage removed)
- Multi-channel fan controller
- Six 120mm/140mm fan mounts
- Four 120mm fan mounts
- Includes a 200mm side panel fan, two front-mounted 120mm fans, and one rear 120mm fan
- Side panel with mesh fan mount locations
- Four 5.25” drive bays Six 3.5” hard drive bays with 2.5” compatibility
- Eight expansion slots
- Supports most 240mm dual radiators (15mm spacing)
- Two-year warranty
- Front I/O panel contains:
- Two USB 3.0 connectors
- One Firewire connector
- 3.5” headphone and microphone connector
- Power and reset switches
- Fan LED on/off switch
Warranty
Two years
Weight
7.53kg
Color
Black
Form Factor
Mid-Tower
Dimensions
521mm x 206mm x 508mm
Motherboard Support
Mini-ITX, MicroATX, ATX, E-ATX
Maximum GPU Length
452mm
Maximum CPU Cooler Height
180mm
Maximum PSU Length
300mm
Expansion Slots
8
Drive Bays
(x4) 5.25in
(x6) Combo 3.5in/2.5in
Material
Steel
Power Supply
ATX (not included)
External Connections
(x2) USB 3.0
(x1) Fan Controller
(x1) Headphone Port
(x1) Microphone Port
Fan Mount Locations
Front: (x2) 120mm
Top: (x2) 120/140mm
Rear: (x1) 120/140mm
Bottom: (x1) 120/140mm
Side: (x1) 200mm or (x2) 120/140mm
Mid: (x2) 120mm
Fans Included
Front: (x2) 120mm
Rear: (x1) 120mm
Side: (x1) 200mm
Radiator Mount Locations
Front: 120/240mm
Top: 240/280mm
Rear: 120/140mm
Bottom: 120/140mm
Compatible Corsair Liquid Coolers
H55, H60, H75, H80i, H90, H100i, H110
The Corsair Carbide Series: Built for Builders.
The Carbide Series shares vital DNA with the award-winning Corsair
Obsidian and Graphite Series. They’re acclaimed for their ease of use
and performance-oriented engineering, and this philosophy is abundant
in the design of the Carbide Series.
Future-Ready.
Support for USB 3.0 and 2.5” SSDs is built-in. Two USB 3.0
connectors are provided on the front panel and connect directly to
motherboards with compatible USB 3.0 headers. Integrated SSD support
lets you install 2.5” solid-state drives in any of the hard drive bays,
without having to deal with adapters.
Easy access.
Thumb screws on the side panels and tool-free drive installation
mean that you’ll spend less quality time with your screwdriver, and the
integrated dust filters can be quickly removed for easy maintenance.
Looking good, inside and out.
The beauty on the inside goes beyond the black-painted interior.
Corsair’s innovative cable management system provides a straightforward
way to route cables behind the motherboard, not across it where it can
interfere with airflow and give your system a cluttered look. And
since looks are an important part of any build, you’ll appreciate the
ability to turn the front panel fan white LEDs on or off with the push
of a button.
Technical Specifications
Carbide Series:
- Side panel with mesh fan mount locations
- Four 5.25” drive bays
- Six 3.5” hard drive bays with 2.5” compatibility
- Eight expansion slots
- Supports most 240mm dual radiators (15mm spacing)
- Two-year warranty
- Front I/O panel contains:
- Two USB 3.0 connectors
- One Firewire connector
- 3.5” headphone and microphone connector
- Power and reset switches
- Fan LED on/off switch
Carbide Series 500R:
- Dimensions: 20.5” x 8.1” x 20”
- Supports graphics cards up to 452mm in length (with hard drive cage removed)
- Multi-channel fan controller
- Six 120mm/140mm fan mounts
- Four 120mm fan mounts
- Includes a 200mm side panel fan, two front-mounted 120mm fans, and one rear 120mm fan
