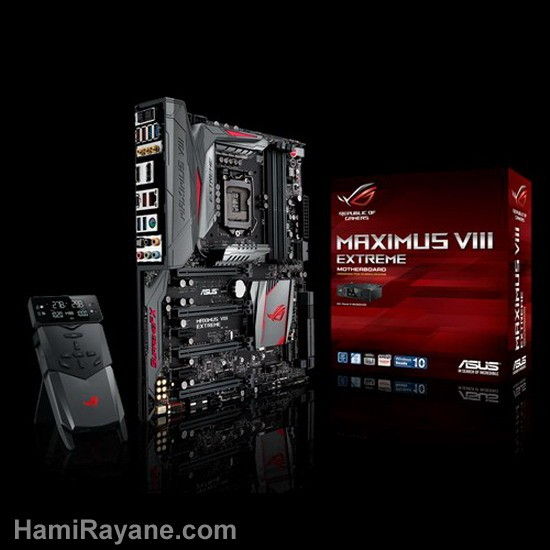

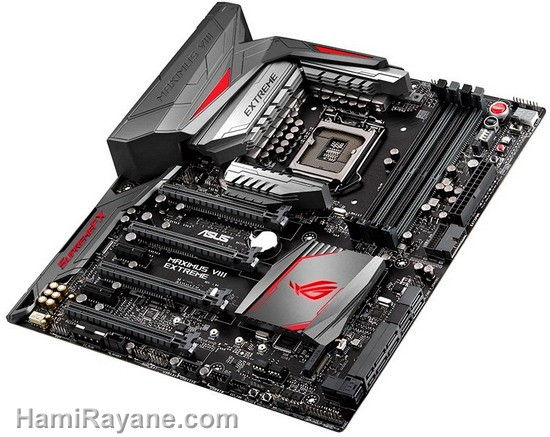

ASUS ROG MAXIMUS VIII EXTREME LGA 1151 Intel Z170 Intel USB 3.1 USB 3.0 U.2 Extended ATX Intel Gaming Motherboard

Learn more about the ASUS MAXIMUS VIII EXTREME

Model

Brand

ASUS

Series

ROG

Model

MAXIMUS VIII EXTREME

Supported CPU

CPU Socket Type

LGA 1151

CPU Type

Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)

Supported CPU Technologies

Turbo Boost Technology 2.0

Chipsets

Chipset

Intel Z170

Memory

Number of Memory Slots

4×288pin

Memory Standard

DDR4 3866*(*O.C.)/ 3800*/ 3733*/ 3600*/ 3500*/ 3466*/ 3400*/ 3333*/ 3300*/ 3200*/ 3000*/ 2800*/ 2666*/ 2400*/ 2133

Maximum Memory Supported

64GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

3 x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x4/x4, gray)
1 x PCIe 3.0/2.0 x16 (x4 mode, gray)

PCI Express x1

2 x PCIe 3.0/2.0 x1 (black)

Storage Devices

SATA 6Gb/s

6 x SATA 6Gb/s port(s), gray, 4 ports from 2 x SATA Express, by Intel Z170 chipset
2 x SATA 6Gb/s port(s), black*3, by ASMedia ASM1061 controller
*3 These SATA ports are for data hard drives only. ATAPI devices are not supported.

SATA Express

2 x SATA Express port

M.2

1 x M.2 x4 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*1
*1 The M.2 slot shares bandwidth with U.2 slot and SATA Express 1 slot. Please refers to user manual for detail information.

SATA RAID

0/1/5/10

Onboard Video

Onboard Video Chipset

Integrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support: HDMI/DisplayPort 1.2 ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

Onboard LAN

LAN Chipset

Intel I219-V

Max LAN Speed

10/100/1000Mbps

Wireless LAN

Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Up to 1300Mbps transfer speed

Bluetooth

Bluetooth V4.0

Rear Panel Ports

PS/2

1 x PS/2 keyboard/mouse port

HDMI

1 x HDMI

RJ45

1 x RJ45

DisplayPort

1 x DisplayPort

USB 3.1

1 x USB 3.1 (black) Type-C
3 x USB 3.1 (red) Type-A

USB 3.0

4 x USB 3.0 (blue)

S/PDIF Out

1 x Optical

Audio Ports

5 Ports

Antenna Connectors

1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0/3.0+HS)

Internal I/O Connectors

Onboard USB

2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)

Other Connectors

1 x U.2 port
1 x AAFP connector
1 x CPU Fan connector(s) (4-pin)
1 x CPU OPT Fan connector(s) (4-pin)
4 x Chassis Fan connector(s) (4-pin)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x 4-pin EZ_PLUG Power connector(s)
1 x System panel(s) (Q-Connector)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x MemOK! button(s)
1 x Slow Mode switch(es)
9 x ProbeIt Measurement Points
3 x Thermal sensor connector(s)
1 x DRAM channel jumper
1 x Power-on button(s)
1 x Reset button(s)
1 x BIOS Switch button(s)
1 x SLI/CFX button (2/3/4-way adjustments)
1 x Water Pump header (4-pin)
1 x LN2 Mode jumper(s)
1 x ROG extension (ROG_EXT) header(s)
1 x Safe Boot button
1 x ReTry button

Physical Spec

Form Factor

Extended ATX

Dimensions (W x L)

12.00" x 10.70"

Power Pin

24 Pin

Features

Features

ROG Exclusive Features:
Start Button
Reset Button
LN2 Mode
Extreme Engine Digi+:
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
- OptiMOS MOSFET
Mem TweakIt
ROG Extreme OC kit:
- ReTry button
- Safe Boot button
- Start button
- Reset button
- Slow Mode
- LN2 Mode
- PCIe x16 Lane Switch
- Debug LED
- EZ Plug
- DRAM channel jumper
ProbeIt
KeyBot II
- One-click Overclocking
- X.M.P.
- DirectKey
- ClrCMOS
- Power On
UEFI BIOS features:
- O.C. Profile
- GPU.DIMM Post
- Tweakers' Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
iROG
Extreme Tweaker
USB BIOS Flashback
Overclocking Protection: COP EX

OC Panel II:
2.6 " LCM display
EXTREME/NORMAL mode switch
EXTREME Mode for subzero OC benching:
- VGA Hotwire
- Subzero Sense
- Slow Mode
- Pause Switch
- ProbeIt
- ReTry button
- Safe Boot button
2 x Thermal sensor connectors
4 x 4-pin extra fan connectors
NORMAL Mode for in-chassis usage:
- OC button
- FanSpeed control button
- LCM backlight on/off button
I/O Ports:
- POWER: 1 x SATA power connector
- ROG_EXT port: 1 x 18-1 pin data connection port

Special Features:
OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App
ASUS Wi-Fi GO!
- Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer
- Wi-Fi GO! & NFC Remote app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems
ASUS Exclusive Features:
- GPU Boost
- MemOK!
- AI Suite 3
- Ai Charger+
- USB 3.1 Boost
- Disk Unlocker
- Mobo Connect
- PC Cleaner
Remote Entertainment
- Media Streamer
- HyStream
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS USB BIOS Flashback
- Push Notice
ASUS Q-Design
RAMCache

Packaging

Package Contents

Accessories:
User's manual
ASUS Q-Shield
8 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x ASUS 3T3R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x Fan Extension Card (3 x 4-pin fan out)
1 x Fan Extension card screw pack
1 x SLI bridge(s)
1 x CrossFire cable(s)
1 x Q-connector(s) (1 in 1)
3 x Thermal sensor cable pack(s)
1 x 12 in 1 ROG Cable Label(s)
ROG Fan Label
1 x 5-pin to 5-pin cable
1 x ROG Door Hanger(s)
OC Panel II:
1 x OC Panel II(s)
1 x OC Panel II 5.25-inch bay metal case
1 x OC Panel II Cable(s)
1 x OC Panel II screw pack(s)
