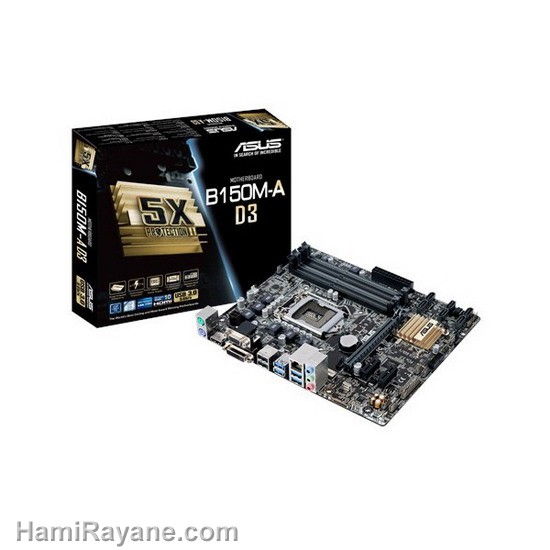

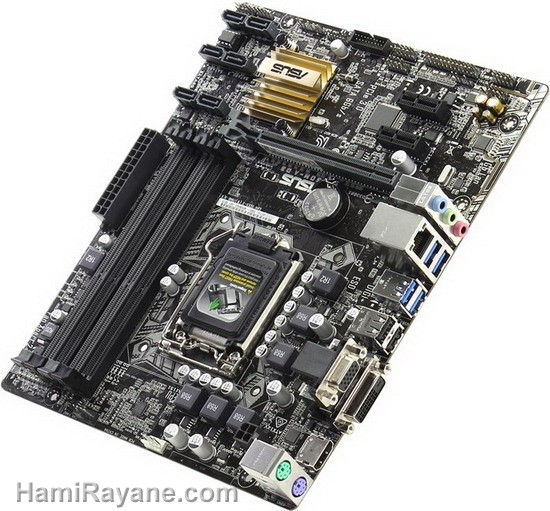

Full-featured micro-ATX B150 with 5X Protection II for dependable stability, DDR4 support and reversible USB Type-C connectivity

• 5X Protection II – Advanced hardware safeguards for all-round protection
• DDR4 memory compatibility
• USB Type-C for convenient connectivity
• Epic gaming audio with LED-illuminated shielding
• Media-acclaimed UEFI BIOS with EZ Flash 3
• Fan Xpert 2+ advanced fan controls for ultimate cooling and silent performance
• Print
• CPU Intel® Socket 1151 for 6^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * Refer to www.asus.com for CPU support list
• Chipset Intel® B150
• Memory4 x DIMM, Max. 64GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor.
• GraphicIntegrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/DVI-D/RGB ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports up to 3 displays simultaneously
• Expansion Slots1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
  2 x PCIe 3.0/2.0 x1
• StorageIntel® B150 chipset :
  6 x SATA 6Gb/s port(s), gray,
• LANRealtek® RTL8111H, 1 x Gigabit LAN Controller(s)
  ASUS LAN Guard
• AudioRealtek® ALC887 8-Channel High Definition Audio CODEC *¹
  - Supports : Jack-detection, Front Panel Jack-retasking
  Audio Feature :
  - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
• USB PortsIntel® B150 chipset :
  1 x USB 5Gb/s port(s) port(s) (1 at back panel, , Support 3A power output)
  Intel® B150 chipset :
  4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)
  Intel® B150 chipset :
  6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board)
• Special FeaturesASUS 5X Protection II :
  - ASUS LANGuard - 2.5X higher surge tolerance
  - ASUS Overvoltage Protection - World-class circuit-protecting power design
  - ASUS DIGI+ VRM - 6 Phase digital power design
  - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
  - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
  ASUS EPU :
  - EPU
  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger
  - Anti-Surge
  - Low EMI Solution
  - ESD Guards
  - USB 3.0 Boost
  - Mobo Connect
  - PC Cleaner
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution & MOS Heatsink
  - ASUS Fan Xpert 2+
  ASUS EZ DIY :
  - ASUS EZ Flash 3
  - ASUS MyLogo 2
  - ASUS UEFI BIOS EZ Mode
  - Push Notice
  ASUS Q-Design :
  - ASUS Q-Slot
  Media Streamer
• Operating System SupportWindows® 10 , 64bit
  Windows® 8.1 , 64bit
  Windows® 7 , 32bit/64bit *²
• Back I/O Ports1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  1 x USB 5Gb/s port(s) Type-C ( support 3A power output )
  2 x USB 3.0 (blue) Type-A
  2 x USB 2.0
  3 x Audio jack(s)
• Internal I/O Ports1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
  2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  1 x TPM header
  1 x LPT header
  1 x COM port(s) connector(s)
  6 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  2 x Chassis Fan connector(s) (2 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 4-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Chassis Intrusion connector(s)
  1 x Clear CMOS jumper(s)
• AccessoriesUser's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x Supporting DVD
• BIOS128Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial
  Presence Detect) memory information
• ManageabilityWfM 2.0, DMI 3.0, WOL by PME, PXE
• Support DiscDrivers
  ASUS Utilities
  EZ Update
  Anti-virus software (OEM version)
• Form FactormATX Form Factor
  9.2 inch x 8.1 inch ( 23.4 cm x 20.6 cm )
• Note*1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
  *2: Please refer to ASUS website and download “Windows® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.
