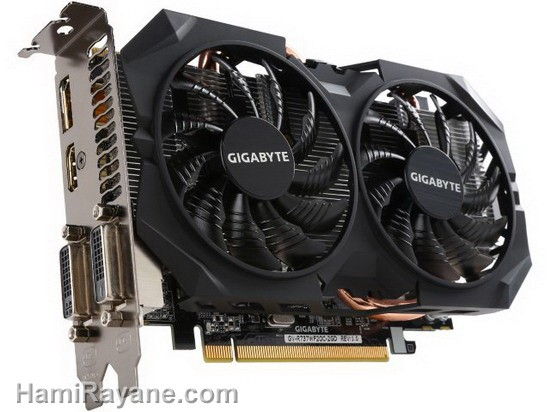

- Powered by AMD Radeon™ R7 370 GPU
- Integrated with industry's best 2GB GDDR5 memory 256-bit memory interface
- OC Edition - Core Clock: 1015MHz (Standard: 975MHz)
- Features Dual-link DVI-I / DVI-D / HDMI / DisplayPort
- System power supply requirement: 500W (with one 6-pin external power connector)
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
| Chipset | Radeon R7 370 |
| Core Clock | 1015 MHz |
| Memory Clock | 5600 MHz |
| Process Technology | 28 nm |
| Memory Size | 2 GB |
| Memory Bus | 256 bit |
| Card Bus | PCI-E 3.0 |
| Memory Type | GDDR5 |
| DirectX | 12 |
| OpenGL | 4.5 |
| PCB Form | ATX |
| Digital max resolution | 4096 X 2160 |
| Analog max resolution | 2048 x 1536 |
| Multi-view | 4 |
| I/O | Dual-link DVI-I*1/DVI-D*1/HDMI*1/Display Port*1 |
| Card size | H=35 L=168 W=110 mm |
| Power requirement | 500W (with one 6-pin external power connector) |
