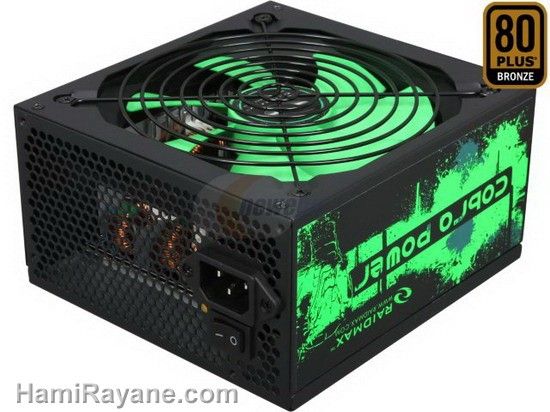

RAIDMAX Cobra RX-500AF-B 500W ATX 12V v2.3/EPS 12V SLI Ready CrossFire Ready 80 PLUS BRONZE Certified Power Supply

RAIDMAX Cobra Power Supply – RX-500AF-B

FEATURES

• Haswell Ready
• 80 PLUS® Bronze certification guarantees more than 85% efficiency at typical loads
• Stable voltage, low-noise levels by thermal controlled 13.5cm fan
• Low noise and voltage regulate DC output quality perfectly
• A strong single +12V rail for high-end system heavy load configuration provides high stability
• The COBRA series offers complete electric protection by OVP, UVP, OPP, and SCP
• Compliance with the latest EU ErP Direction
• Fully safety certificate with CE, FCC, TUV, and UL

SPECIFICATIONS

CONNECTORS

MB 20 + 4-Pin

x 1

PCI-E 6 + 2-Pin

x 1

CPU 4 + 4-Pin

x 1

SATA

x 5

Molex 4-Pin

x 4

Floppy

x 1

GALLERY

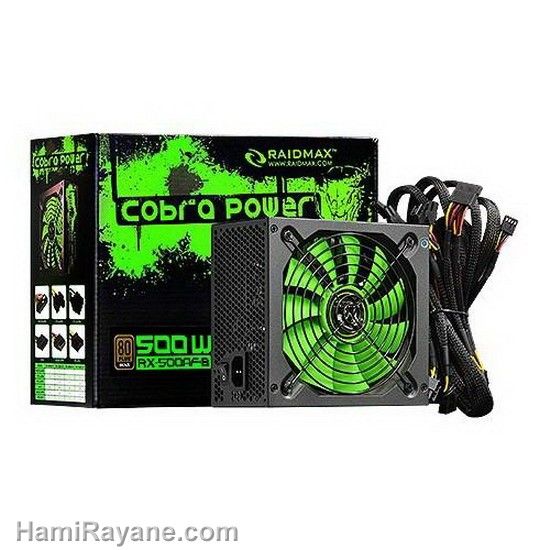

WHAT'S IN THE BOX

Learn more about the Raidmax RX-500AF-B

Model

Brand

RAIDMAX

Model

RX-500AF-B

Series

Cobra

Details

Type

ATX 12V v2.3/EPS 12V

Maximum Power

500W

Fans

135 mm Fan with Green Blade

PFC

No

Main Connector

20+4Pin

+12V Rails

Single

PCI-Express Connector

1 x 6+2-Pin

SATA Power Connector

5

SLI

SLI Ready

Haswell Support

Yes

CrossFire

CrossFire Ready

Modular

No

Efficiency

Up to 87.40%

Energy-Efficient

80 PLUS BRONZE Certified

Over Voltage Protection

Yes

Overload Protection

Yes

Input Voltage

110 - 240 V

Input Frequency Range

47 - 63 Hz

Input Current

13A

Output

+3.3V@20A, +5V@20A, +12V@32A, [email protected] ,[email protected]

MTBF

>100,000 Hours

Approvals

UL, CUL, TUV, FCC, CE

Dimensions

6.0"W x 3.5"H x 6.5"D

Weight

3.92 lbs.

Features

Connectors

1x 20+4-Pin Main Connector
1x 4+4-Pin ATX12V/EPS12V Connector
1 x 6+2-Pin PCI-E Connector
5 x 5-Pin SATA Connector
4 x 4-Pin Peripheral Connector
1 x 4-Pin Floppy Connector

Features

Haswell Ready

Stable voltage regulate DC output quality perfectly

A strong single +12V rail for high-end system heavy load configuration provides stable and highly compatibility

80 plus Bronze certification guarantees more than 85% efficiency at typical loads

The Cobra Series offers complete electric protection by SCP(Short Circuit protection), UVP(Under Voltage protection), OVP(Over Voltage protection) and OPP(Over Power protection)

Compliance with the latest EU ErP Direction.
