RAIDMAX XT series RX-300XT 300W ATX12V / EPS12V Power Supply

• Customer Q&A

XT Series
RX-300XTFEATURES

1. Support SINGLE +12V output for higher power usage.
2. Honeycomb ventilation design for optimal heat dissipation.
3. Support C6/C7 power saving mode on Intel Haswell CPU.
4. Up to 4 or 5 SATA connectors supports multiple of hard drives.
5. Support with Intel ATX12V V2.3 .
6. Full protections with SCP, OVP, OPP.
7. 120mm silent fan with smart thermal fan speed control circuit.

SPECIFICATIONS

BASIC SPECIFICATION
MODEL	RX-300XT
AC INPUT	115/230VAC, 3.5/7A , 50-60HZ
DC OUTPUT	3.3V	5V	12V1	-12V	5VSB
MAX OUTPUT CURRENT	14A	15A	21A	0.5A	2.5A
MAX COMBINED POWER	100W		252W	6W	12.5W
TOTAL POWER	300W
CONNECTORS
M/B 20+4 PIN	1
CPU 4+4 PIN	1
PCI-E 6+2 PIN	--
PCI-E 6 PIN	--
SATA	4
MOLEX 4 PIN	2
FLOPPY	1
DIMENSIONS
150(L) X 140(W) X 86(H)mm

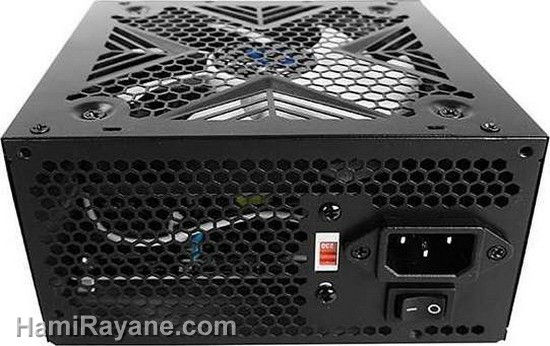

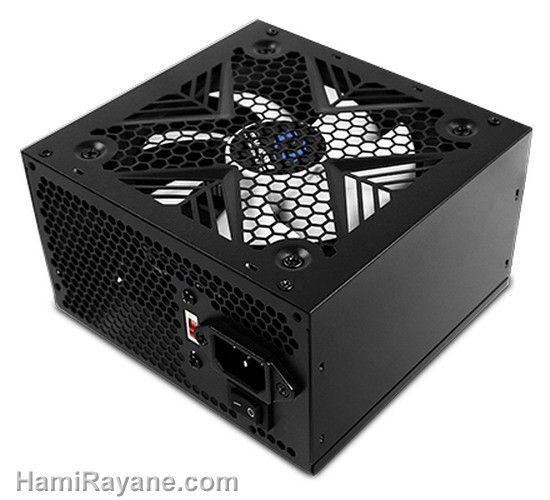

GALLERY

Learn more about the Raidmax RX-300XT

Model

Brand

RAIDMAX

Model

RX-300XT

Series

XT series

Details

Type

ATX12V / EPS12V

Maximum Power

300W

Fans

1 x 120 mm Fan

PFC

No

Main Connector

20+4Pin

+12V Rails

Single

PCI-Express Connector

No

SATA Power Connector

4

SLI

No

CrossFire

No

Modular

No

Efficiency

up to 78%

Over Voltage Protection

Yes

Overload Protection

Yes

Input Voltage

110 - 240 V

Input Frequency Range

50/60 Hz

Input Current

15 A

Output

+3.3V@14A, +5V@15A, +12V1@21A, [email protected] ,[email protected]

MTBF

>100,000 Hours

Approvals

FCC, CE

Dimensions

3.50" x 6.00" x 5.75"

Weight

2.54 lbs.
