DN 500 has electrical efficiency of up to 80%. It is designed with less
than 1w of consumption during off-mode, which meet the standard of ErP
(Effective Radiated Power). Outstanding and stable performance makes it
one of the ideal choices for multi-purpose usage.
Description
DN 500 has electrical efficiency of up to 80%. It is designed with less
than 1w of consumption during off-mode, which meet the standard of ErP
(Effective Radiated Power). Outstanding and stable performance makes it
one of the ideal choices for multi-purpose usage.
During typical load, DN500 reaches up to 80% efficiency to save energy.
In compliance with RoHS directive, DN500 helps us to protect the environment.
Technical Spec

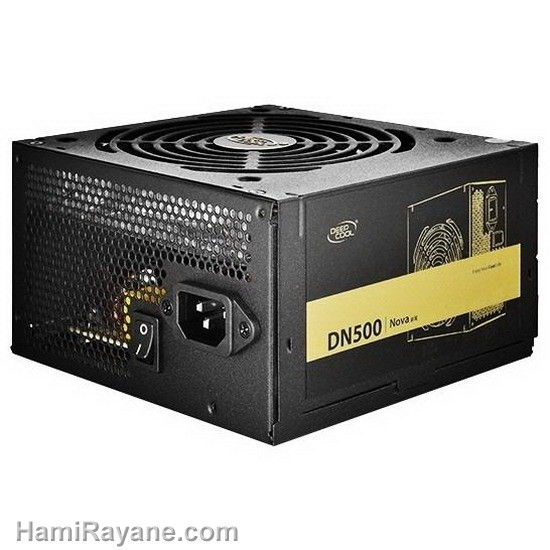

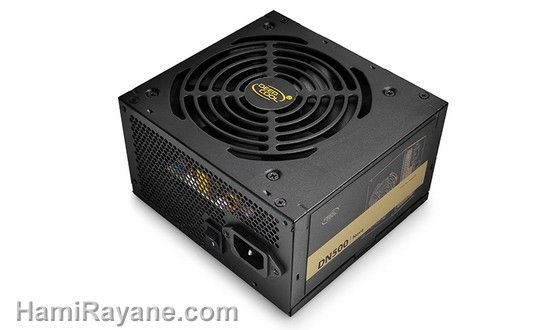

| Model | DN500 |
| Type | ATX 12V V2.31 |
|
| Dimension | 150×140×86mm (W x L x H) |
| Output Capacity | 500W |
| Input Voltage | 230V |
| Input Current | 4A |
| Input Frequency Range | 47~63Hz |
| Fan Size | 120mm |
| PFC | Active PFC (>0.99) |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms |
| Efficiency | 80% Under Typical Load |
| Protection | OVP / OPP/ SCP |
| Operation Temperature | 0~40°C |
| Regulatory | TUV / CCC / CB / EAC |
| MTBF | 100,000 Hours
|
