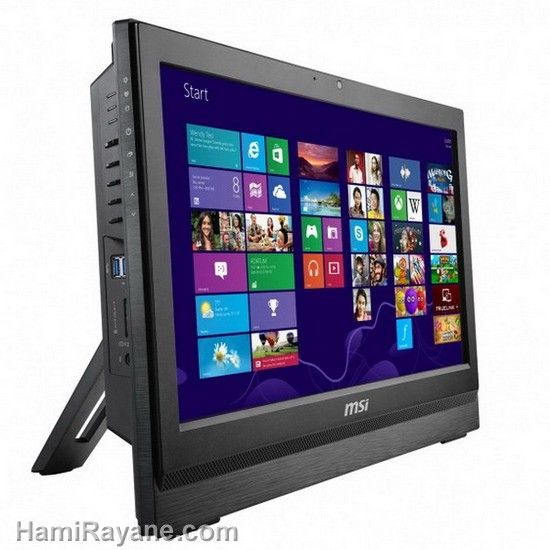

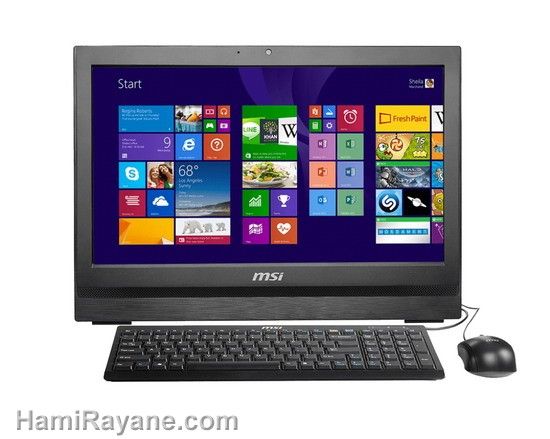

AP200 G3220/4/500/Intel/Multi Toch/ComPort/Win

AP200

• Overview
• Specifications
• Support & Service Location
• Where to Buy

The latest 4th generation Intel® Pentium® / Core™ i3 Processor, representing superior performance over previous generations.

AP200 features the fastest Intel® Dual-core Haswell Processor built on the latest 22nm Shark Bay Platform. Intel® H81 Express Chipset is the 4th generation single-chip design to support the LGA1150 socket. In all, this high performance combination in a low power package provides enhanced system speed and higher productivity.

Double Eye Protection MSI Exclusive Anti-Flicker The Anti-Flicker technology integrated into the AP200 display stabilizes the screen's output current and prevents flickering undetectable to the naked eyes. Even when used for extended periods of time, Anti-Flicker technology effectively reduces eyestrain, improving productivity and quality of life.

Less Blue Light Blue light is light with wavelengths in the 381nm to 500nm range. This can be dangerous to the human eye, causing cataract and retinal degeneration. The AP200 also features exclusive "Less Blue Light" technology to effectively reduce visible blue spectrum energy emitted from the display, thus reducing eyestrain and preventing vision damage.

Military Class 4 The AP200 is equipped with highly-stable and high-quality military-grade parts and components with SFC, Dark CAP capacitors, and Hi-c Cap, which provide excellent stability, power efficiency, and performance. These three key components have passed U.S. Military Standard MIL-STD-810G certification and provide extra protection to ensure the system’s stable operation. Hi-C CAP - Low Profile, High Efficiency A Hi-c CAP is a very small, but super-efficient capacitor. Besides ensuring enough spacing around a CPU socket to install large coolers, it also allows for 93% energy efficiency. Thanks to Hi-c CAP's MSI mainboards are the most energy efficient in the market. Super Ferrite Choke - High Power/Efficiency Super Ferrite Chokes use a Ferrite core that is Super-Permeable. This allows the Super Ferrite Chokes to run at a 35 degree Celsius lower temperature, have a 30% higher current capacity, a 20% improvement in power efficiency and better overclocking power stability. Dark CAP - High Efficiency, high heat resistance With their aluminum core design, Dark CAP's have been a staple in high-end design mainboard designs and provides lower Equivalent Series Resistance (ESR) as well as its over-10-year lifespan.

Anti-Glare Display MSI offers the best and most comfortable visual experience for corporate environments. The AP200 features an anti-glare display to reduce background reflections in offices, well-lit shop floors, and in study rooms, thereby helping to reduce eyestrain and enabling users to better concentrate on the contents of their computer monitor without being distracted by reflections.

2 COM Port AThe MSI AP200's two COM ports are best suited for commercial POS applications, such as connecting barcode readers, credit card readers, receipt printers, and more.

Auto-Pivot Design With an optional height adjustable pivot stand (pivot, left-right rotation, vertical position, and incline angle), the AP200 is designed to meet a wide variety of different needs, uses, and range of applications. The pivot Stand also offers auto screen rotation, commonly associated with smart phones and tablet computers, to automatically and conveniently rotate the screen display when flipped 90 degrees without having to manually tweak software display options.

USB 3.0 with MSI Super Charger

With MSI Super Charger technology, it does not only function as normal USB 3.0 port, but also enable users to charge cell phones or MP3 players even when the system is tuned off. The USB 3.0 supports transfer rates up to 5 Gbps, or ten times that of USB 2.0, making it the fastest transfer interface available on the market today.

Easy Upgrade AThe AP200 features a removable panel to facilitate system memory upgrades, that authorized dealer or service center can upgrade on their own easily and max up to 16GB.

• CPUIntel® Pentium® G3220 Processor (3M Cache, 3.00 GHz)
  Intel® Core™ i3-4130 Processor (3M Cache, 3.40 GHz)
• OSWindows 8.1
• ChipsetIntel® H81 Chipset
• Memory4GB DDR3 1333/1600 MHz, 2 SO-DIMMs, up to 16GB
• GraphicsIntegrate Intel® HD Graphics
• Panel Resolution20” LCD Panel LED Backlight 1600x900 HD+Flciker-Free
• Touch PanelMulti Touch (For Win 7 only) / Non Touch (For Win8 / Win7)
• HDD3.5'' SATA III
• Optical DriveTray-in DVD Super Multi
• Audio2 x 3W Speakers
• LAN10/100/1000 x 1
• Wireless LAN802.11 b/g/n WiFi
• BluetoothOptional
• USB 3.0 port2 (1 with Super Charger)
• USB 2.0 port4
• Card Reader3 in 1 (SD, MMC, MS)
• Webcam1M-pixel Full HD
• TV TunerOptional (mini PCI-E interface)
• Expansion SlotMini PCI-E 2x (1xWiFi)
• HDMI out1
• VGA out1
• COM Port2
• Mic-in/Headphone-out1 /1
• Keyboard / MouseUSB Keyboard / Mouse
• AC Adapter120W
• AIO Wall Mount Kit IIY
• AIO Wall Mount Kit IIIY
• Dimension(WxDxH)495x359x91 mm with holder / 495x493x166 mm with stand
• Net Weight8.99 kg with holder / 9.76 kg with stand
• Gross Weight9.82 kg with holder / 10.76 kg with stand
