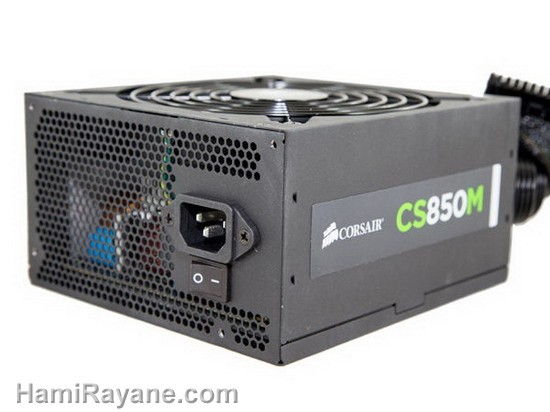

CORSAIR CSM Series CS850M CP-9020086-NA 850W ATX12V / EPS12V 80 PLUS GOLD Certified Modular Active PFC Power Supply

Learn more about the Corsair CP-9020086-NA

Model

Brand

CORSAIR

Model

CP-9020086-NA

Details

Type

ATX12V / EPS12V

Maximum Power

850W

PFC

Active

Main Connector

20+4Pin

+12V Rails

Single

PCI-Express Connector

4 x 6+2-Pin

SATA Power Connector

8

Haswell Support

Ready

Modular

Modular

Energy-Efficient

80 PLUS GOLD Certified

Over Voltage Protection

Yes

Overload Protection

Yes

Input Voltage

100 - 240 V

Input Frequency Range

47 - 63 Hz

Input Current

12A - 6A

Output

+3.3V@25A, +5V@25A, [email protected], [email protected], +5VSB@3A

MTBF

>100,000 Hours

Approvals

FCC, ICES, UL, CUL, TUV, CCC, CE, RCM, CB, EAC, KC, BSMI, ROHS, WEEE

Dimensions

3.39" x 5.51" x 6.30"

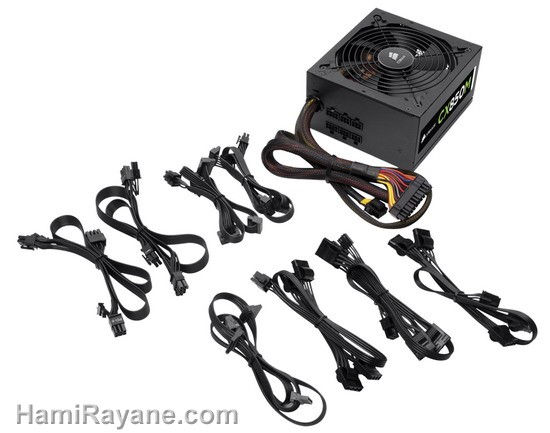

Features

Connectors

1 x ATX Connector
1 x EPS Connector
2 x Floppy Connector
8 x 4-Pin Peripheral Connector
4 x PCI-E Connector
8 x SATA Connector
