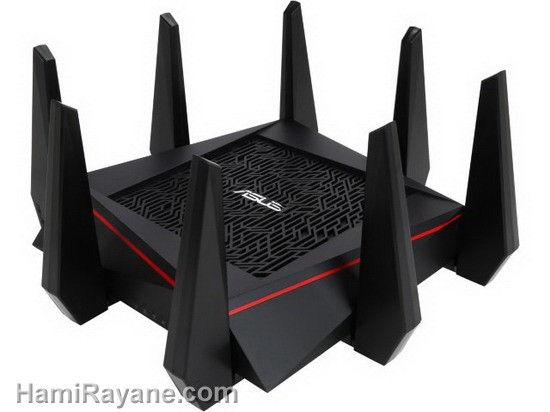

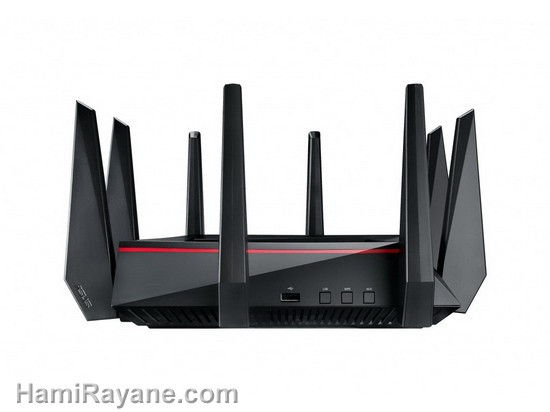

Wireless-AC5300 Tri-Band Gigabit Router

• Ultra-fast 802.11ac Wi-Fi router with a combined tri-band data rate of 5334 Mbps for low latency online gaming, smooth 4K streaming and extremely fast file-sharing.
• Broadcom® NitroQAM^TM technology boosts two 5 GHz data rates up to 4334 Mbps and 2.4 GHz up to 1000 Mbps.
• Tri-Band with multiple devices connected at the same time.
• Tri-Band Smart Connect automatically selects the fastest of the three available frequency bands for each device, based on the device’s speed, signal strength and how busy each band is.
• 4x4 antenna design with AiRadar universal beamforming for unbeatable wireless signal coverage
• Link aggregation supports close to 2 Gbps wired transmission for more devices to enjoy faster access speed.
• Multiple capacity Wi-Fi with revolutionary MU-MIMO technology.
• AiProtection with Trend Micro^TM with triple-strength total network security, plus robust parental controls and privacy protection.

• Network StandardIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6
• Product SegmentAC5300 ultimate AC performance:1000+2167+2167 Mbps
• CoverageVery large homes
• Data Rate802.11a : 6,9,12,18,24,36,48,54 Mbps
  802.11b : 1, 2, 5.5, 11 Mbps
  802.11g : 6,9,12,18,24,36,48,54 Mbps
  802.11n : up to 600 Mbps
  802.11ac : up to 1734 Mbps
  1024QAM (2.4GHz) : up to 1000 Mbps
  1024QAM (5GHz) : up to2167 Mbps
• AntennaExternal antenna x 8
• Transmit/ReceiveMIMO technology
  2.4 GHz 4 x 4
  5 GHz-1 4 x 4
  5 GHz-2 4 x 4
• Memory128 MB Flash
  512 MB RAM
• Wi-Fi TechnologyBeamforming: standard-based and universal
  1024-QAM high data rate
  20/40/80 MHz bandwidth
• Operating Frequency2.4G Hz, 5 GHz-1, 5 GHz-2
• Encryption64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , Radius with 802.1x, WPS support
• Firewall & Access ControlFirewall：SPI intrusion detection,DoS protection
  Access control：Parental control, Network service filter, URL filter, Port filter
• ManagementUPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, SNMP, NTP Client, DDNS, Port Trigger, Virtual Server, DMZ, System Event Log
• WAN Connection TypeInternet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
• PortsRJ45 for 10/100/1000 BaseT for WAN x 1, RJ45 for 10/100/1000/Gigabits BaseT for LAN x 4
  USB 2.0 x 1
  USB 3.0 x 1
• ButtonWPS Button, Reset Button, Power Button, Wireless on/off Button
• FeaturesLink Aggregation
  MU-MIMO
  Airtime Fairness
  Smart Connect
  Traffic Analyzer
  Adaptive QoS
  AiProtection
  Parental Control
  Guest Network : 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3
  VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server, OpenVPN Server
  VPN client : PPTP client, L2TP client, OpenVPN client
  Mac OS Backup
  Enhanced media server (AiPlayer app compatible)
  - Image : Jpeg
  - Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
  - Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
  AiCloud personal cloud service
  3G/4G data sharing
  Printer Server
  - Multifunctional printer support (Windows only)
  - LPR protocol support
  Download Master
  - Support bt, nzb, http, ed2k
  - Support encryption, DHT, PEX and magnet link
  - Upload and download bandwidth control
  - Download scheduling
  AiDisk file server
  - Samba and FTP server with account management
  Dual WAN
  IPTV support
  Roaming Assist
• LED IndicatorPower x 1
  WAN x 1
  LAN x 1
  Wireless x 2
  WPS x 1
• Power SupplyAC Input : 110V~240V(50~60Hz)
  DC Output : 19 V with max. 3.42 A current
• Dimensions245 x 245 x 65 ~ mm (WxDxH)
• Weight1814 g
• ColorBlack
• Package ContentRT-AC5300 Tri-band Gigabit Router
  RJ-45 Cable
  Power Adapter
  Quick Start Guide
  Warranty Card
  Support CD (User manual & Utility software)
• Operation modeWireless router mode
  Access point mode

• Actual data throughput will vary from network conditions and environmental factors.

• Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
• All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
• Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.
• PCB color and bundled software versions are subject to change without notice.
• Brand and product names mentioned are trademarks of their respective companies.
