Beauty Beyond Boundaries:
Full HD AH-IPS LED-backlit and Frameless Monitor

• Full HD AH-IPS LED display with 178° wide-view angle in frameless design for edge-to-edge brilliance
• ASUS SonicMaster Technology, co-developed with Bang & Olufsen ICEpower® for premium immersive audio
• Featuring dual HDMI ports for multi device connections
• Good Design Award Winner for its ultra-slim, ergonomic design with sturdy sundial-inspired stand
• Eye Care Technology: Flicker-free and Low Blue Light for comfortable viewing (certified by TÜV Rheinland laboratories)

BEAUTY BEYOND BOUNDARIES

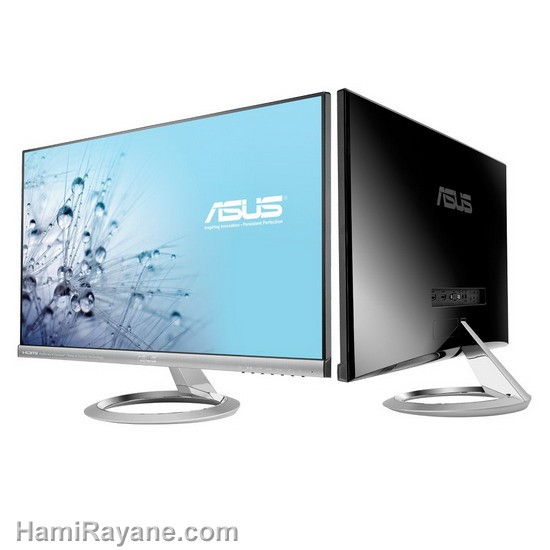

Inspired by millennia of artistic legacy, the new Designo MX Series sports an elegant and precision-crafted sundial design. The MX259H features an edge-to-edge frameless panel with 178° ultra-wide viewing angle AH-IPS A+ technology for incredible visuals. In addition, built-in ASUS SonicMaster technology, co-developed with Bang & Olufsen ICEpower®, delivers immersive premium audio performance. The 2012 Good Design Award-winning ultra-slim and ergonomic design can be tilted to provide you highly comfortable viewing experiences, while dual HDMI offers extensive connectivity options.

Subtle & elegant design

Incredibly subtle but sophisticated

ASUS Designo MX Series displays sport ultra-slim profiles — with MX259H measuring just 15mm at its thinnest point– thereby minimizing desk space requirements. In addition, the MX Series presents an edge-to-edge frameless screen with bezel thickness of just 0.8mm. This subtle but elegant design is further accentuated by a sundial-inspired stand which provides a sturdy base for the monitor. MX Series design has already garnered accolades at the 2012 Good Design Awards.

Vivid, lifelike visuals

The latest IPS technology with 178° wide-view angles

Designo MX259H features a 16:9 aspect ratio LED-backlit AH-IPS A+ panel with a 178° wide-view angle that minimizes color shift on both horizontal and vertical planes to ensure quality visuals from almost any direction. AH-IPS is the latest in IPS technology – delivering improved color accuracy plus increased energy efficiency.

MX259H uses a 178°(H) / 178°(V) ultra-wide viewing angle full HD AH-IPS A+ panel that eliminates color shift from almost any direction and in nearly all environments.

Built tough and gamer-centric comfortable

Tracer Free Technology improves the response time of ASUS monitors, eliminating ghosting and tracers during video playback. It does this by controlling voltage levels, resulting in 5ms response time so MX259H provides fluid and clear video playback with silky-smooth motion during gameplay.

ASUS Exclusive Innovation and Design

ASUS Smart Contrast Ratio for lifelike visuals

With ASUS Smart Contrast Ratio (ASCR) of 80,000,000:1 and 250cd/m² brightness, MX259H augments display contrast and sharpness by adjusting backlighting luminance to achieve the deepest blacks and brightest whites for truly lifelike visuals.

ASUS Eye Care Technology

MX259H provides Eye Care features – Flicker-free and Low Blue Light that prevent your eyes from fatigue and strain and many possible eye symptoms that caused by screen flicker and hazard blue light. MX259H has undergone stringent performance tests and is certified Flicker-free and Low Blue Light by TÜV Rheinland laboratories, a global provider of technical, safety, and certification services.

QuickFit Virtual Scale for true what you see is what you get

ASUS includes its exclusive QuickFit Virtual Scale feature with the MX259H, allowing you to preview photos and documents on-screen in their actual size prior to printing. It can be activated via a monitor hotkey, and serves as a highly useful guide to accurately view and edit photos in their native size.

Supporting Formats:
• Document: A4, letter
• Photo: 8”x10”, 5”x7”, 4”x6”, 3”x5”, 2”x2”
• Grid: Alignment

Premium Immersive Audio

The Designo MX259H features ASUS SonicMaster technology – which was co-developed by the ASUS Golden Ear team and Bang & Olufsen ICEpower®. This ASUS-exclusive audio technology combines advanced hardware and software to refine every acoustic detail in pristine quality to deliver crystal clear, true-to-life surround sound — reproducing richer and more distinct vocals at a wider frequency range and louder volumes.

Greater and smoother output with bigger speakers

Considering its slender form factor, adding powerful audio to MX259H presented a challenge. Nonetheless, the display features up to 32mm diameter speakers for greater and smoother sound impact with better bass performance. It also offers a resonance chamber of up to 100cc, expanding monitor sound range to new extremes.

A built-in amplifier powers speaker sound reproduction, just like a car engine with more horsepower means better performance can be attained. MX259H uses up to 5W amplifiers per channel, with speakers embedding large rare earth magnets to generate more powerful and striking sound.

Audio by Bang & Olufsen ICEpower®

ASUS MX259H delivers outstanding images and stunning graphics that deserve superior sound to complete multimedia experiences whether watching movies, gaming, or listening to music. It features state-of-the-art audio technology from Bang & Olufsen ICEpower®, with great sound packed into its slim form factor to create incredibly engaging sound quality. This means no investment in additional speakers is needed.

Bang & Olufsen ICEpower® technology on MX259H has been developed specifically for compact media products to create excellent sound even in confined spaces. The superior sound quality is a result of innovative technology, ample power delivery, and months of optimizing and fine-tuning by audio engineers. Typically, powerful sound equals high energy consumption, but that’s not the case with MX259H. The screen’s embedded Class D MobileSound 3 technology is highly energy efficient, converting up to 92 % of power input to useful audio output.

• DisplayPanel Size: Wide Screen 25"(63.5cm) 16:9
  Panel Type : AH-IPS
  True Resolution : 1920x1080
  Full HD 1080P : Yes
  Display Surface Non-glare
  Pixel Pitch : 0.288mm
  Brightness(Max) : 250 cd/㎡
  ASUS Smart Contrast Ratio (ASCR) : 80000000:1
  Viewing Angle (CR≧10) : 178°(H)/178°(V)
  Response Time : 5ms (Gray to Gray)
  Display Colors : 16.7M
  Flicker free
• Video FeatureTrace Free Technology : Yes
  SPLENDID Video Intelligence Technology
  SPLENDID Video Preset Modes : 8 Modes (sRGB Mode/Scenery Mode/Theater Mode/Standard Mode/Night View Mode/Game Mode/Reading Mode/Darkroom Mode)
  Skin-Tone Selection : 3 Modes
  Color Temperature Selection : 4 Modes
  QuickFit (modes) : Yes (Letter/A4/Alignment Grid/Photo Modes)
  Low Blue Light : Yes
  HDCP support : Yes
• Audio FeaturesStereo Speakers : 3W x 2 Stereo RMS with ASUS SonicMaster audio technology and ICEpower® | Bang & Olufsen technology
• Convenient HotkeySPLENDID Video Preset Mode Selection
  Auto. Adjustment
  Brightness Adjustment
  Volume Adjustment
  Input Selection
  QuickFit
• I/O PortsSignal Input : HDMI x 2, D-Sub
  PC Audio Input : 3.5mm Mini-Jack
  AV Audio Input :
  Earphone jack : 3.5mm Mini-Jack
• Signal FrequencyAnalog Signal Frequency : 30~80 KHz(H)/ 56~76 Hz(V)
  Digital Signal Frequency : 30~80 KHz(H)/ 56~76 Hz(V)
• Power ConsumptionPower Consumption:<35W*
  Power Saving Mode:<0.5W
  Power Off Mode:<0.5W
  Voltage: 100-240V/50-60Hz
• Mechanical DesignChassis Colors : Silver+Black
  Tilt : +20°~-5°
  Slim Design : Yes
  Frameless Design : Yes
• SecurityKensington lock
• DimensionsPhys. Dimension with Stand(WxHxD):578x414x224mm
  Box Dimension(WxHxD):659x496x117mm
• WeightNet Weight(Esti.):4.3kg
  Gross Weight(Esti.):6.4kg
• AccessoriesVGA cable
  Audio cable
  Power cord
  Power adapter
  Quick start guide
  HDMI-to-DVI cable (Optional)
  HDMI cable (Optional)
  Warranty Card
• Regulation ApprovalEnergy Star®, BSMI, CB, CCC, CE, CEL level 0, C-Tick, CU, ErP, FCC, ISO-9241-307, J-MOSS, PSE, RoHS, UL/cUL, VCCI, WEEE, WHQL (Windows 8, Windows 7), TUV Flicker-free , TUV Low Blue Light
