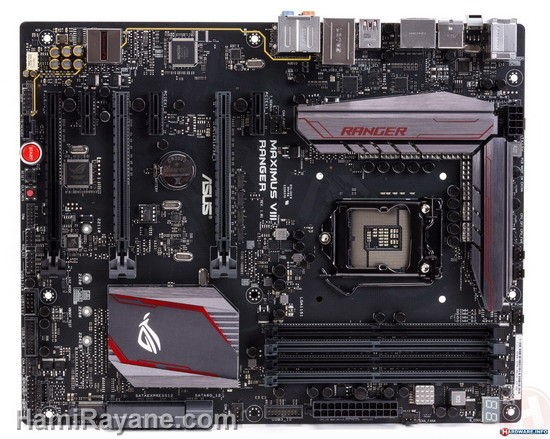

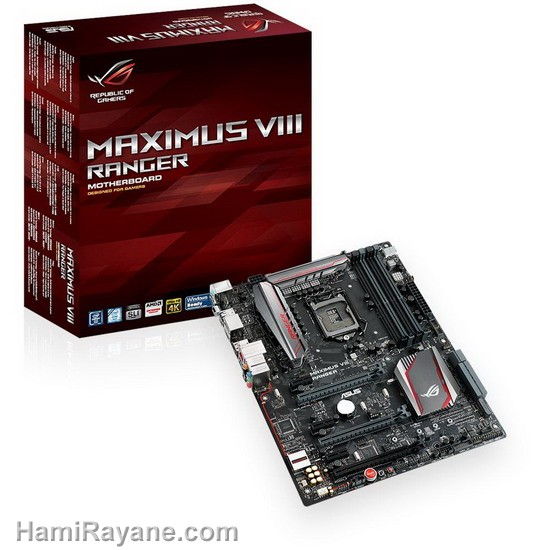

Highly-affordable ROG ATX Z170 board with epic performance and gaming-oriented design

Highly-affordable ROG ATX Z170 board with epic performance and gaming-oriented design

• LGA1151 socket for 6th-gen Intel® Core™ desktop processors.
• Dual DDR4 3400 (OC) support.
• Best gaming performance – 5-Way Optimization with Auto-Tuning, 2nd-generation T-Topology and OC design
• Best gaming audio – reinvented SupremeFX 2015 with intuitive Sonic Studio II.
• Best gaming networking – best-in-class Intel® Gigabit Ethernet, LANGuard and GameFirst technology.
• Best gaming protection – carefully-selected premium components to ensure maximum durability.
• ROG gives you more – more gaming-oriented utilities, all free!

Add to comparison list

Print

More Sharing ServicesShare

SUPERIOR SPECS

Hear every detail

BEST GAMING AUDIO

More power, more wins

BEST GAMING PERFORMANCE

Put your game first

BEST GAMING NETWORKING

Greater quality, greater durability

BEST GAMING PROTECTION

More bonuses, more saved bucks

ROG GIVES YOU MORE

WATCH THE VIDEO

• 1Intel LGA 1151
• 21 x HDMI 1.4b
  1 x DisplayPort 1.2
  4K/Ultra HD display support
  3-display-output support
• 32 x USB 3.1 (10Gb/s)
  Type-A + Type-C

• 4Intel I219-V
  GameFirst
  LANGuard
• 5SupremeFX 2015
  ESS ES9023P DAC
  2VRMS Headphone Output
  NEC De-pop Relay
  Dedicated Clock
• 62 x PCIe 3.0 x16 slots (CPU)
  3 x PCIe 3.0 x1 slot (PCH)
  1 x PCIe 3.0 x16 slot (PCH)

• 7PRO CLOCK
• 8M.2 Socket 3 Type M
  PCIe Gen 3.0 x4 mode
  SATA mode

• 96 x SATA 6Gb/s
  (4 shared with SATA-E)
  2 x SATA Express
• 106 x USB 3.0
  8 x USB 2.0

• 11DDR4 3400+ MHz (OC)
  4 x DIMM, Dual Channel
  XMP Support
• 12Q-Code
•

The battlefield is a cacophony, so the clearest audio ups your kills-deaths (K/D) ratio. ROG's awesome audio expertise is the result of extensive R&D,
and SupremeFX is the crystal-clear result — onboard audio that you have to hear to believe.

SupremeFX 2015

Jacked-up audio, inside and out

ROG provides you with the very best gaming-audio inputs and outputs, with special shielded designs, and a collection of carefully selected professional-grade audio components, including an ESS ES9023P digital-to-analog converter (DAC) with Hyperstream™ technology, ultra-low-jitter clock, Nichicon capacitors, 2Vrms headphone amp, and Sonic SenseAmp that automatically detects and optimizes any headset (32-600 ohms) for purest sound quality. SupremeFX 2015 also features intuitive Sonic Studio II for you to apply and enjoy different audio effects for perfect entertainment, plus Perfect Noise noise-cancellation technology for team conversations with total clarity.

SUPREMEFX SHIELDING

Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.

Sonic Studio II

Intuitive audio-tuning suite

One-click virtual-surround function emulates 7.1 channels, even through a stereo (2.0-channel) headset. It offers five more superb audio controls, including Reverb, Bass Boost, Equalizer, Voice Clarity and Smart EQ — ensuring that everything you hear sounds just amazing.

Casting Enhancer improves both streaming and recording audio quality, reducing noise artifacts and stabilizing overall voice volume. It also improves all the rich details and boost bass effect of in-game sounds and music playback.

Perfect Voice reduces noise for both incoming and outgoing communications during in-game chat so every teammate is heard and no command is missed.

Greater performance means smoother gameplay — and that means more chance to win. With the best overclocking (OC) design, UEFI BIOS and intuitive OC utility, you'll enjoy unmatched performance — coupled with an exclusive cooling design ensures your system never breaks a sweat.

One click overclock and cooling, done!

Get performance, efficiency, digital power, fan control, and even networking and
audio tuning tailored for you

5-Way Optimization at your disposal it takes just one click to tune complex settings — for instant, highly-controllable performance boosts! Our exclusive technology dynamically optimizes essential aspects of your system based on real-time use, so you get superb CPU performance, everyday energy savings, ultra-stable digital power, cool and quiet fans, and even networking and audio settings that are tailored for the apps that you are using. In short, 5-Way Optimization ensures that your PC is perfect for gaming, entertainment, productivity or just about anything else!

• Games run swiftly and smoothly with high performance, prioritized bandwidth and vivid sound
• Fans stay whisper-quiet for everyday computing, and ensure extreme cooling efficiency when gaming
• Stutter is eliminated for smooth-running apps, even under heavy loading
• Energy waste is reduced so you'll save money

• CPU performance boost
• All-round energy efficiency
• Advanced fan controls
• Precise Digital Power Control
• Game faster, rank higher

Cooler by design

Fan Xpert 3

Advanced fan and water-pump controls for ultimate cooling and quietness with onboard thermal sensors and hardware-level 4-pin PWM/3-pin DC mode detection, Fan Xpert 3 makes sure every fan achieves the best balance of cooling performance and low noise!

Next page

CPU performance boost

All-round energy efficiency

Cooler by design

Precise Digital Power Control

Accelerate your favorite apps and games with automated ease

OC Design - ASUS PRO Clock technology

A dedicated base-clock (BCLK) generator designed for 6th-generation Intel® processors that allows overclocked base clock frequencies up to 400MHz*. This custom solution works in tandem with the ASUS Turbo Processor Unit (TPU), to enhance voltage and base-clock overclocking control — granting an exciting new way to boost performance to extreme heights.

Advantages of PRO Clock
• Less boot up time
• Lower jitter under extreme conditions.
• More stable under heavy overclocking.

* PRO Clock range up to 650 MHz is available, BCLK overclocking range may vary according to CPU capabilities

DDR4 OVERCLOCKING STRENGTH IN NUMBERS

ASUS 2nd generation T-Topology allows DDR4 memory overclocking to reach new heights: over DDR4-3400 MHz with all memory slots populated. Featuring a customized trace layout for reduced crosstalk and coupling noise, ASUS 2nd generation T-Topology ensures time-aligned signal transfer for improved memory stability and compatibility.

Media-acclaimed UEFI BIOS

The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.

EZ Flash 3

Flash the latest BIOS via the internet, and from within the BIOS.

SMART

Check up your storages devices' Self-Monitoring, Analysis, and Reporting Technology (SMART) logs to gauge reliability, and even determine if they're about to fail.

EZ Tuning Wizard– OC and RAID

Select your hardware and apply different scenarios to tune system performance, or streamline your RAID configuration for faster data retrieval and backups!

My Favorite

Quickly find tuning options and add preferred tools to the list.

EZ mode

• Intuitive graphical fan control

  Fine-tune individual fans simply by dragging a curve with the mouse

• EZ XMP

  Improve your DRAM performance with a click

• SATA Information

  View SATA port details for easy device recognition

• Fast Clock Adjustment

  Use mouse controls to change the time and date

Advanced Mode

• GPU POST

  Automatically detect selected ASUS graphics cards to view detailed information

• Secure Erase

  Restore your SSDs to factory-fresh condition

• Last Modified Log

  Track the latest changes and save preferred profiles onto a USB drive

• SATA Port Renaming

  Rename SATA ports for easy identification

USB UEFI BIOS Flashback

Refresh your BIOS in a flash, even when the system is off

RAMCache

Speed your game loads

ROG's uniquely-intelligent technology efficiently caches the critical files on a particular storage device, so that your favorite games and apps launch at breakneck speeds—getting to work the moment it's activated. RAMCache turns milliseconds into microseconds to boost game-load times to stratospheric levels, and minimizes risk of data loss!

Minimizing lag is a full-time job. Luckily, ROG motherboards deliver the
sucker punch of superior hardware and software — so you can focus on your game, while your board lands lag a knock-out blow

Intel Gigabit Ethernet

More throughput, less CPU usage and great gaming experiences

ROG features the very latest Intel® Ethernet (I219-V) for faster, smoother gaming — always. Intel's LAN has the serious double advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput, so there's more power for your game and your gameplay.

LANGuard

Pumped-up throughput. Best surge protection

Signal-coupling technology and premium surface-mounted components ensure a more reliable connection and better throughput. Additionally, electrostatically-guarded and surge-protected components (ESD Guards) allow for 1.9x-greater tolerance to static electricity and 2.5x-greater protection (up to 15kV) against surges!

GameFirst III

Banish lag, play smooth

Exclusive GameFirst III prioritizes game-related packets and allocates more bandwidth to games, eliminating laggy gameplay, streaming stutters and file-sharing slowdown — so you'll always be the frontrunner. Choose from Optimization, Game, Media Streaming or File Sharing presets and watch your network fly!

As a gamer you demand stability and durability, so ROG integrates long-lasting, premium components, plus exclusive smart DIY designs across the board — ensuring the best gaming experiences.

CPU installation tool

1 layer

protection from socket-pin damage

TrueVolt USB

2 dedicated

USB power supplies rock-steady 5V to all USB ports, minimizing power fluctuations for minimal data loss

Q-connector

1 piece

sorts all front-panel cables

Q-Slot

1 clip

to swap or secure your graphics card

Q-DIMM

1 sided

clips for super-simple, super-secure handling of memory modules

DRAM Over-current Protection

1 additional

resettable fuse protects connection ports and DRAM against overcurrent and short-circuit damage

Backplates

2 backplates

to provide additional cooling, protection and reinforcement

ESD Guards

2x greater

electrostatic protection than standard. ESD Guards cover the PS2, USB, audio and LAN ports

Stainless Steel Back I/O

3x longer

lifespan than ordinary panels

Black nickel-coated Q-Shield

0 pain!

Protect your hands form nicks and cuts

Overwolf

Stay in the game

The clever unobtrusive overlay that keeps you in the game, so you can browse, email, IM, stream or record while you play, and all dressed up in color-matched ROG skins to show you're part of an elite pack — soon to be available for download on Overwolf's app store!

* Overwolf must be installed from the supplied DVD.

KeyBot II

The free keyboard upgrade – upgraded!

Free keyboard upgrade from an exclusive microprocessor and intuitive user interface. Record macros directly from the keyboard, switch profiles in moments, enable special functions with hotkey from F1-F10, start and even boost your PC from shutdown (S5 mode)!

What's in the box!

ROG cable stickers

12 labels

for your cables

ROG fan stickers

3 badges

of honor for your fans

SATA cable

4 cables

for greater storage

Door hanger

0 disturbance

while gaming

And.. More!

AI Suite 3

One-stop control panel

ROG theme CPU-Z

Shows your important system information with pride

Mem TweakIt

Dynamic timing monitoring, DRAM efficiency gauge

RAMDisk

Boost your favorite applications up to 20X faster than SSD with the junction function.

Sonic Radar II

A stealthy overlay that maps battlefield sounds so you can locate opponents and teammates at a glance.

Kaspersky® Anti-Virus (1 year)

The best protection from viruses and spyware

DAEMON Tools Pro Standard (1 year)

The leading tool for optical and virtual discs

PC Cleaner

Accelerate your PC by eliminating clogs with simple click

100% SteamOS support

Play your favorite Steam games now and forever.

Radar on the latest gaming innovations

OG's sights are locked on future revolutions and relationships

Ready for 6th-generation Intel® LGA1151 Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® processors

This motherboard supports 6th-generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® processors in the LGA1151 package, with graphics, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, two-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great graphics performance.

Intel® Z170 Express Chipset

Intel® Z170 Express is a single-chipset design that supports 6th-generation Intel® LGA1151 Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, Z170 provides a maximum ten USB 3.0 ports, six SATA 6Gbit/s ports, 32Gbit/s M.2 and PCIe 3.0 lane speed support for faster data retrieval. Intel® Z170 Express also supports integrated-graphics (iGPU) functions, so you'll enjoy the very latest Intel integrated graphics performance.

• CPU Intel® Socket 1151 for 6^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset Intel® Z170
• Memory4 x DIMM, Max. 64GB, DDR4 3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• GraphicIntegrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/DisplayPort 1.2 ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
  - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
  Maximum shared memory of 512 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
• Multi-GPU SupportSupports NVIDIA® Quad-GPU SLI™ Technology
  Supports AMD 3-Way CrossFireX™ Technology
• Expansion Slots2 x PCIe 3.0/2.0 x16 (x16 or dual x8, gray)
  1 x PCIe 3.0/2.0 x16 (max at x4 mode, black)
  3 x PCIe 3.0/2.0 x1 (x1 mode, black)
• StorageIntel® Z170 chipset :
  1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*¹
  6 x SATA 6Gb/s port(s), gray, , 4 ports from 2 x SATA Express
  2 x SATA Express port, gray
  Support Raid 0, 1, 5, 10
  Intel® Rapid Storage Technology supports*²
  Supports Intel® Smart Response Technology*²
• LANIntel® I219V, 1 x Gigabit LAN Controller(s), GameFirst technology
  Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
  Anti-surge LANGuard
• AudioROG SupremeFX 2015 8-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - SupremeFX Shielding Technology
  - ESS® ES9023P DAC: dB SNR, dB THD+N (Max. kHz/ -bit)
  - TI RC4580 2VRMS audio OP AMP(s)
  Audio Feature :
  - Gold-plated jacks
  - DTS Connect
  - Optical S/PDIF out port(s) at back panel
  - Sonic SenseAmp
  - Sonic Studio II
  - Sonic Radar II
• USB PortsIntel® Z170 chipset :
  6 x USB 3.0 port(s) (2 at back panel, blue, 4 at mid-board)
  Intel® Z170 chipset : *³
  8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)
  ASMedia® USB 3.1 controller :
  1 x USB 3.1 port(s) (1 at back panel, black, Type-C)
  ASMedia® USB 3.1 controller :
  1 x USB 3.1 port(s) (1 at back panel, red, Type-A)
• ROG Exclusive FeaturesStart Button
  Reset Button
  LN2 Mode
  Mem TweakIt
  KeyBot II
  - One-click Overclocking
  - X.M.P.
  - DirectKey
  - ClrCMOS
  - Power On
  UEFI BIOS features :
  - O.C. Profile
  - GPU.DIMM Post
  - Tweakers' Paradise
  - ROG SSD Secure Erase
  - Graphic Card Information Preview
  ROG RAMDisk
  Extreme Tweaker
• Special FeaturesOC Design - ASUS PRO Clock Technology
  - Full BCLK range for extreme overclocking performance
  5-Way Optimization by Dual Intelligent Processors 5
  - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App
  ASUS Exclusive Features :
  - MemOK!
  - AI Suite 3
  - Ai Charger+
  - USB 3.1 Boost
  - Disk Unlocker
  - Mobo Connect
  - PC Cleaner
  Remote Entertainment
  - Media Streamer
  - HyStream
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS USB BIOS Flashback
  - Push Notice
  ASUS Q-Design :
  - ASUS Q-Shield
  - ASUS Q-Code
  - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)
  - ASUS Q-Slot
  - ASUS Q-DIMM
  - ASUS Q-Connector
  Overclocking Protection :
  - ASUS C.P.R.(CPU Parameter Recall)
  RAMCache
• Operating System SupportWindows® 10 , 64bit
  Windows® 8.1 , 64bit
  Windows® 7 , 32bit/64bit
• Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)
  1 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45) port(s)
  1 x USB 3.1 (black)Type-C
  1 x USB 3.1 (red)Type-A
  2 x USB 3.0 (blue)
  4 x USB 2.0
  1 x Optical S/PDIF out
  5 x Audio jack(s)
  1 x USB BIOS Flashback Button(s)
• Internal I/O Ports1 x AAFP connector
  2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  2 x SATA Express connector: gray, Compatible with 4 x SATA 6.0 Gb/s ports
  1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
  2 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x CPU OPT Fan connector(s) (1 x 4 -pin)
  4 x Chassis Fan connector(s) (4 x 4 -pin)
  1 x Thunderbolt header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x System panel(s) (Q-Connector)
  1 x 5-pin EXT_FAN(Extension Fan) connector
  1 x MemOK! button(s)
  1 x Thermal sensor connector(s)
  1 x Power-on button(s)
  1 x Reset button(s)
  1 x Clear CMOS button(s)
  1 x Water Pump header (4-pin)
  1 x LN2 Mode jumper(s)
  1 x ROG extension (ROG_EXT) header(s)
  1 x 14-1 pin TPM connector
• AccessoriesUser's manual
  ASUS Q-Shield
  4 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x CPU installation tool
  1 x Supporting DVD
  1 x SLI bridge(s)
  1 x Q-connector(s) (1 in 1)
  1 x 12 in 1 ROG Cable Label(s)
  ROG Fan Label
  1 x ROG Door Hanger(s)
• BIOS1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.
• ManageabilityWfM2.0, DMI3.0, WOL by PME, PXE
• Support DiscDrivers
  ROG GameFirst technology
  ROG RAMDisk
  ROG RAMCache
  ROG CPU-Z
  ROG Mem TweakIt
  Overwolf
  Keybot II
  Kaspersky® Anti-Virus
  DAEMON Tools Pro Standard
  ASUS WebStorage
  ASUS Utilities
• Form FactorATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
