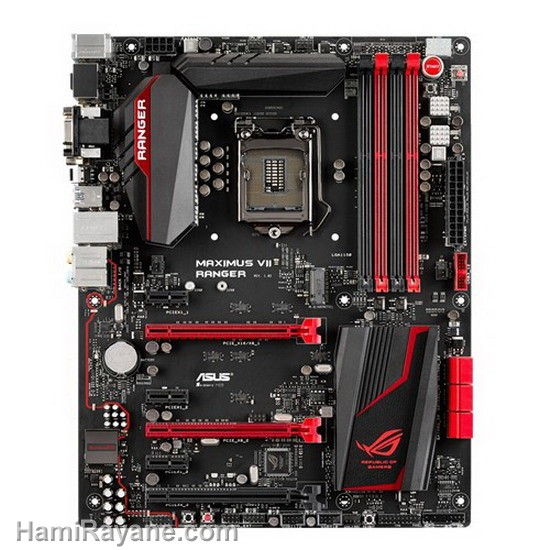

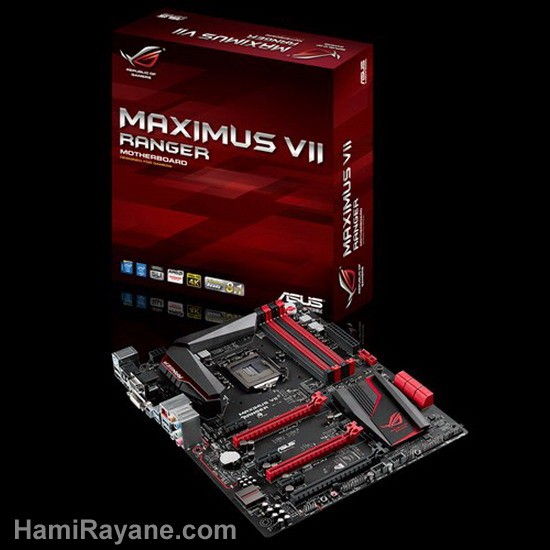

High-value entry-level ROG gaming ATX-board with superb specifications and game-boosting features - Intel® LGA1150 4th, New 4th & 5th-Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Ready
- Intel® Z97 Express Chipset with M.2 support (up to 10Gb/s data-transfer)
- Intel™ Ethernet + LANGuard + GameFirst III –This is game networking taken to the next level. This is ROG
- SupremeFX 2014 + Radar II – New and improved audio that’s beyond compare
- KeyBot + TrueVolt USB - Instant keyboard upgrade and rock-steady 5V USB supply
- USB UEFI BIOS and Secure Erase - Award-winning simplicity and factory-fresh conditioning for superb performance
- CPU Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list - Chipset Intel® Z97
- Memory 4 x DIMM, Max. 32GB, DDR3 3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). - Graphic Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI-D/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ - Multi-GPU Support Supports NVIDIA® Quad-GPU SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology - Expansion Slots 2 x PCIe 3.0/2.0 x16 (x16 or dual x8, red)
1 x PCIe 2.0 x16 (x4 mode, black) *1
3 x PCIe 2.0 x1 - Storage Intel® Z97 chipset :
6 x SATA 6Gb/s port(s), gray,
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *2 - LAN Intel® I218V, 1 x Gigabit LAN Controller(s)
- Audio ROG SupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- SupremeFX Shielding Technology
- ELNA® premium audio capacitors
Audio Feature :
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- Sonic SoundStage
- Sonic SenseAmp
- Sonic Studio
- Sonic Radar II - USB Ports Intel® Z97 chipset : *3
6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® Z97 chipset :
7 x USB 2.0 port(s) (2 at back panel, , 5 at mid-board) - ROG Exclusive Features Extreme Engine Digi+ III :
- NexFET™ Power Block MOSFET
- New Alloy Chokes
- 10K Black Metallic Capacitors
KeyBot
- CPU Level Up
- XMP
- Direct Key
ROG RAMDisk
GameFirst III
Extreme Tweaker - Special Features ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- USB Charger+
- USB 3.0 Boost
- Disk Unlocker
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS USB BIOS Flashback
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall) - Operating System Support Windows® 8.1
Windows® 8
Windows® 7 - Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
2 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x USB BIOS Flashback Button(s) - Internal I/O Ports 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
3 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s)
1 x TPM connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
1 x Thermal sensor connector(s)
0 x Power-on button(s)
0 x Reset button(s)
1 x Clear CMOS jumper(s)
0 x ROG extension (ROG_EXT) header(s)
1 x KeyBot Button
1 x Sonic SoundStage Button - Accessories User's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x 12 in 1 ROG Cable Label(s)
1 x ROG Door Hanger(s) - BIOS 64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI5.0a, Multi-Language BIOS
- Manageability WfM 2.0, DMI 2.7, WOL by PME, PXE
- Operating System Windows® 8.1 32/64-bit
Windows® 8 32/64-bit
Windows® 7 32/64-bit - Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) - Management Solution WfM 2.0, DMI 2.7, WOL by PME, PXE
- Note *1: The PCIe 2.0 x 16 slot (PCIEX4_3) shares bandwith with PCIe 2.0 x1 and M.2 slot. The default setting is Auto Mode, which automatically optimizes the system bandwidth. If you install a PCIe 2.0 x4 device, the system will automatically detect and disable PCIe 2.0 x1 and M.2 slot.
*2: The supported functions depends on the CPU installed.
*3: Support ASUS USB 3.0 Boost, UASP standard on the Intel native USB 3.0 is only supported under Windows® 8.1 / 8
The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products. - All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
