Dual-Band Wireless-N600 Gigabit ADSL Modem Router

*ASUSWRT Dashboard UI for Easy Setup, Signal Monitoring, and Network Application

Control

• Integrated home gateway with independent CPUs for modem and router
• Dual-band Wi-Fi delivers up to 600Mbps in bandwidth
• 4x Gigabit Ethernet ports provide enhanced wired network performance
• Auto-detecting ADSL connection with CD/manual-free setup
• Finest P2P experience via 300,000 concurrent data sessions
• 3G/4G sharing, file sharing, printer sharing, and iPad charging using multi-functional twin USB ports

Add to comparison list

Wins PCMag Readers’ Choice Award for the fourth straight year (2012, 2013, 2014 and 2015)

Dual-CPU home gateway and entertainment center

As the first ASUS N600 simultaneous dual-band Wi-Fi ADSL router, the DSL-N55U provides a stylish design, sophisticated features, and easy setup alongside supreme wireless and wired networking for the home.

Two USB 2.0 ports allow the DSL-N55U to share 3G/4G dongle signal; to share printing and scanning functions on a network, and operate as high-speed NAS (Network Attached Storage) when an external storage device is connected. It can act as a media server and home entertainment center. Any device, such as a PS3, iPhone, or Eee Pad can directly stream music and video wirelessly through the DSL-N55U.

For wired networking, four Gigabit Ethernet ports provide excellent capacity. Support for up to 300,000 data sessions means the DSL-N55U has around 20 times the networking capacity of other home routers. Data transmission stays fast even when the router is under heavy load, and easy-to-use QoS settings assure that important traffic — VoIP calls or online gaming — isn’t adversely affected by large file downloads.

Two Devices in One – ADSL Modem and Wi-Fi Router

Designed with the latest in networking technology, the DSL-N55U has two Independent CPUs for its ADSL modem and Wi-Fi router modes, which deliver exceptionally fast wired and wireless connectivity. It comes with a powerful detachable Wi-Fi antenna to further extend wireless range.

Dual-Band Connectivity for Lag-Free Entertainment

Double your total wireless bandwidth and reduce Wi-Fi interference with the DSL-N55U’s simultaneous 2.4GHz and 5GHz bands at a combined speed of up to 600Mbps. Basic internet processes like web browsing or file downloads run under the 2.4GHz band, while simultaneous streaming of HD content occurs in the super-fast 5GHz band, always ensuring optimized speeds and allowing a smooth and buffer-free experience.

Optimized and Reliable Wireless Coverage via Ai Radar

ASUS Ai Radar intelligently strengthens connections to wireless devices. With high-powered amplification, it provides stronger signals in any direction with better coverage to improve data throughput.

3-Step Easy Setup Through Your Pad, Smartphone, or PC

With the DSL-N55U, setup is simple. Simply power and connect the router and then open a browser on a Wi-Fi-enabled device like a laptop or tablet. You will be taken to a setup page with a prompt to enter the ID/password from your Internet provider and that’s it! Now setting up your network is easier than ever.

Optimize Your Network for You

Do you game a lot, or spend most of your time streaming videos? Whatever your planned use is, the DSL-N55U has a Quality of Service (QoS) that lets you select how much bandwidth is prioritized for virtually any task. Plus, the traffic monitor allows you to check your Web usage in a clear and graphical interface.

Get online in 30 seconds

Smart auto-detection design makes it possible for you to go from first plugging in the DSL-N55U to setup completion in under 30 seconds! Compared to the lengthy installs and hassles of other routers, this development from ASUS offers a true wonder of ease of use, and puts the most extreme networking speeds within your reach quicker than ever before.

Dual Purpose: 3G/4G and WAN

Get online using your modem or via a 3G/4G USB dongle – the choice is yours. With 3G/4G failover function, you get a backup plan should DSL fail to connect.

Powerful functions, easiest management

With the ASUSWRT Dashboard UI, setup, monitor, and control network applications all in one intuitive area. The whole new dashboard interface lets you manage all clients and settings on a single graphical interface and provides 1-click updates.

Separate and Secure Wi-Fi Network via Guest Network Access

Share your internet connection with your guests in safety, with no need to share your personal password or network resources. ASUS Guest Network supports up to three separate guest networks over both Wi-Fi bands, each with its own usage limits and password. Guests cannot access your primary network or any other connected devices.

VPN Server Enabled

Easily set up a VPN server to surf the Web and access data—no matter where you are. Featuring MPPE encryption, your data transmission will be secure and confidential.

Two Multi-Functional Built-In USB ports

Featuring connectivity to devices, FTPs, Samba, UPnP AV servers, the DSL-N55U makes sharing and networking easier with two built-in USB ports. Download HTTP, FTP, and P2P files to a router-connected USB storage device all day, even without a PC. Additionally, the twin USB ports allow for networked printer and file server connections, so you perform multiple tasks at once.

Powerful Online Multitasking at up to 300,000 Data Sessions

Support for a massive data pipeline of up to 300,000 data sessions means the DSL-N55U has around 20 times the networking capacity of conventional routers for exceptionally smooth performance.

• Network StandardIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4, IPv6
• Product SegmentN600 advanced performance; 300+300Mbps
• Wi-Fi Data Rate 802.11a : 6,9,12,18,24,36,48,54Mbps
  802.11b : 1, 2, 5.5, 11Mbps
  802.11g : 6,9,12,18,24,36,48,54Mbps
  802.11n : up to 600Mbps
• xDSL Data RateANSI T1.413 Issue 2,
  ITU-T G.992.1 Annex A (G.dmt),
  ITU-T G.992.2 (G.lite),
  ITU-T G.994.1 (G.hs),
  ITU-T G.992.3 (G.dmt.bis),
  ITU-T G.992.5 Annex A/M
  ADSL 2/2+ 24Mbps downstream
• AntennaDetachable dBi dipole antenna x 3
• LED IndicatorPower, ADSL, Internet, WLAN, LAN x 4
• ButtonWPS Button, Reset Button, Power Switch, Wireless on/off Switch
• Ports1 x RJ11 for ADSL
  4 x RJ45 for 10/100/Gigabits BaseT for LAN
• USB PortsUSB 2.0 x 2
• USB ApplicationsPrinter Server
  FTP Server
  3G/4G sharing
• Operating Frequency2.4GHz
  5GHz
• Operation Channel13 Europe (ETSI)
• Memory8MB Flash/128MB DDR2 for Wi-Fi,
  1MB Flash/2MB SDRAM for ADSL
• Receive Sensitivity-95dBm@1Mbps
  -89dBm@11Mbps
  -75dBm@54Mbps
  [email protected]
  -68dBm@150Mbps
• Output Powerb mode : 17 ~19 dBm
  g mode : 15 ~17 dBm
  n mode : 15 ~17 dBm
• Security64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, Radius with 802.1x, WPS support
• Firewall & Access ControlBuilt-in NAT and SPI firewall
  Port, IP packet, URL, MAC filter
• ManagementWeb-based GUI configuration
  Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
  UPnP IGD 1.0
  Auto VPI/VCI detection
  Configuration backup and restore
  Diagnostics
  Log & Trace function
• UtilitiesWeb-based GUI configuration
  Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
  Auto VPI/VCI detection
  Configuration backup and restore
  Diagnostics
  Log & Trace function
  Network Printer Setup
• VPN SupportIPSec Pass-Throuth
  PPTP Pass-Through
  L2TP Pass-Through
  PPTP server
• Power AdapterAC Input : 100 ~240 V(50~60HZ)
  DC Output : 19 V/1.58 A
  Power Consumption : 30 W Max.
• CertificatesCE, C-Tick, Telepermit, IDA, PCT, Wi-Fi
• Dimensions207 x 148.8 x 35.5 mm (WxDxH)
• Weight400 g (Device Only)
• EnvironmentalOperating Temperature: -10 °C to 50 °C (14 °F to 122 ºF)
  Storage Temperature: -40 ° to 60 ° C (-40 °F to 140 °F)
  Operating Humidity: 5 % to 95 % (Non-condensing)
  Storage Humidity: 5 % to 95 % (Non-condensing)
• OS SupportWindows® 8 , 32bit/64bit
  Windows® 7 , 32bit/64bit
  Windows® Vista , 32bit/64bit
  Windows® XP , 32bit/64bit
  Mac OS X
  Linux

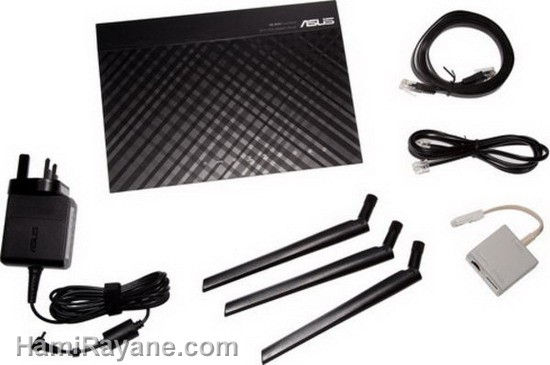

• Package ContentDSL-N55U Wireless Annex A ADSL Router
  3x detachable dual band antennas
  Power adapter
  Splitter
  Support CD (user manual, utilities)
  RJ45 cable
  RJ11 cable
  Quick Start Guide
  Warranty Card
• Manufacturer WarrantyLocalized to different countries
