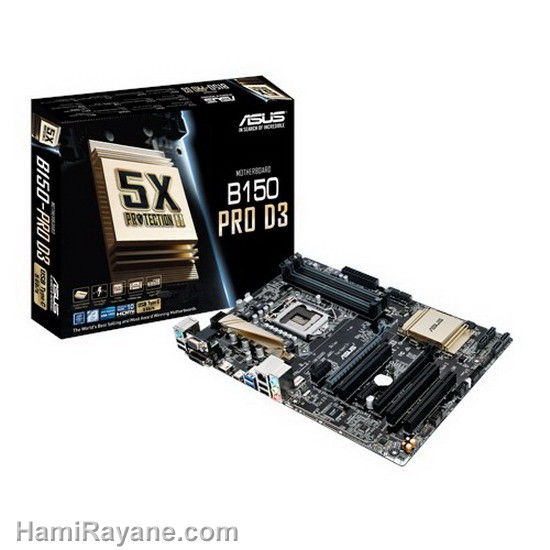

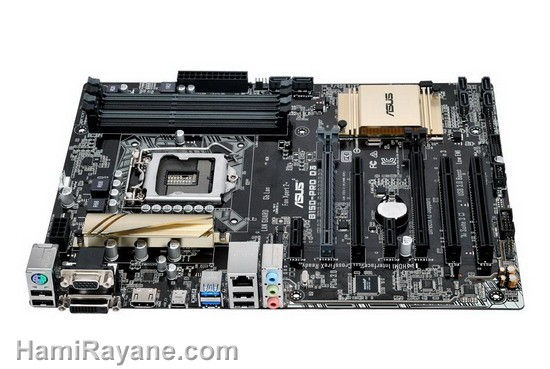

Supreme ATX B150 with 5X Protection II for dependable stability, LED-illuminated audio shielding and flexible DDR3/DDR3L compatibility

• 5X Protection II – Advanced hardware safeguards for all-round protection
• DDR3/DDR3L memory compatibility
• USB Type-C for convenient connectivity
• Epic gaming audio with LED-illuminated shielding
• Media-acclaimed UEFI BIOS with EZ Flash 3
• Fan Xpert 2+ advanced fan controls for ultimate cooling and silent performance

Add to comparison list

• CPU Intel® Socket 1151 for 6^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * Refer to www.asus.com for CPU support list
• Chipset Intel® B150
• Memory4 x DIMM, Max. 64GB, DDR3 1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor.
• GraphicIntegrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : DVI-D/RGB ports
  - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB
• Multi-GPU SupportSupports AMD CrossFireX™ Technology
• Expansion Slots1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
  1 x PCIe 3.0/2.0 x16 (max at x4 mode, black)
  2 x PCIe 3.0/2.0 x1
  3 x PCI
• StorageIntel® B150 chipset :
  6 x SATA 6Gb/s port(s), gray,
• LANRealtek® 8111GR, 1 x Gigabit LAN Controller(s)
  ASUS LAN Guard
• AudioRealtek® ALC887 8-Channel High Definition Audio CODEC *¹
  - Supports : Jack-detection, Front Panel Jack-retasking
  Audio Feature :
  - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
• USB PortsIntel® B150 chipset :
  1 x USB 5Gb/s port(s) port(s) (1 at back panel, , Reversible, Support 3A power output)
  Intel® B150 chipset :
  4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)
  Intel® B150 chipset :
  6 x USB 2.0/1.1 port(s) (4 at back panel, black, 2 at mid-board)
• Special FeaturesASUS 5X Protection II :
  - ASUS LANGuard - 2.5X higher surge tolerance
  - ASUS Overvoltage Protection - World-class circuit-protecting power design
  - ASUS DIGI+ VRM - 6 Phase digital power design
  - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
  - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
  ASUS EPU :
  - EPU
  ASUS Exclusive Features :
  - GPU Boost *²
  - AI Suite 3
  - Ai Charger
  - Anti-Surge
  - Low EMI Solution
  - ESD Guards
  - USB 3.0 Boost
  - Mobo Connect
  - PC Cleaner
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution
  - ASUS Fan Xpert 2+
  ASUS EZ DIY :
  - ASUS EZ Flash 3
  - ASUS MyLogo 2
  - ASUS UEFI BIOS EZ Mode
  - Push Notice
  ASUS Q-Design :
  - ASUS Q-Slot
  Media Streamer
• Operating System SupportWindows® 10 , 64bit
  Windows® 8.1 , 64bit
  Windows® 7 , 32bit/64bit *³
• Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI-D
  1 x D-Sub
  1 x LAN (RJ45) port(s)
  1 x USB 5Gb/s port(s) Type-C ( support 3A power output )
  2 x USB 3.0
  4 x USB 2.0
  3 x Audio jack(s)
• Internal I/O Ports1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
  1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  1 x COM port(s) connector(s)
  6 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin, [White])
  2 x Chassis Fan connector(s) (2 x 4 -pin, [Black])
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
• AccessoriesUser's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x Supporting DVD
• BIOS128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
• ManageabilityWfM 2.0, DMI 3.0, WOL by PME, PXE
• Support DiscDrivers
  ASUS Utilities
  EZ Update
  Anti-virus software (OEM version)
• Form FactorATX Form Factor
  12 inch x 8.6 inch ( 30.5 cm x 21.8 cm )
• Note*1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
  *2: The function supported varies by processor
  *3: Please refer to ASUS website and download “Windows® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.
